Shop CENTURY

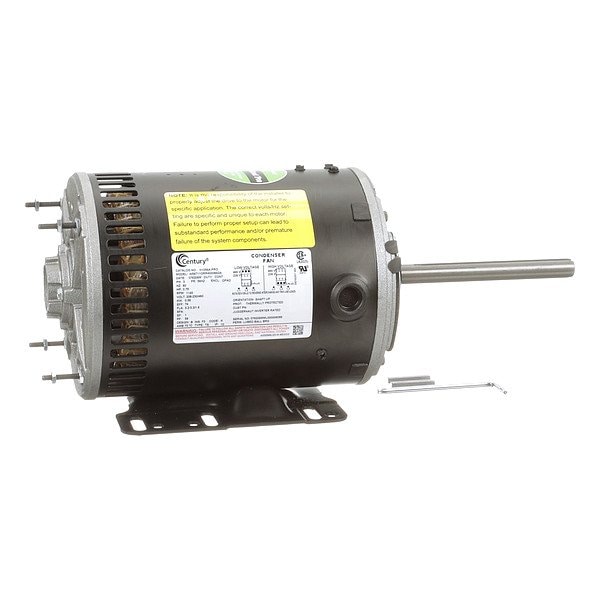

Condenser Fan Motor, 3/4 hp

  • Mfr # 056T11ORR40008A2

  • Zoro # G911930998

product price:
$
885.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
056T11ORR40008A2
Zoro #
G911930998
UPC #
786674076199
Country of Origin
Mexico
Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
3/4
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56HZ
Motor Mounting Type
Lug
Phase
Three
Motor Enclosure Design
Open Air-Over
Motor Shaft Rotation
CW/CCW
Full Load Amps
3.2/1.6 A
Motor Application
HVAC/R
Max. Ambient Temp.
70 Degrees C
Duty
Continuous
Ins. Class
F
Voltage Compatibility
230V AC, 460V AC
Application
Condenser Fan
Motor Bearings
Ball
Motor Service Factor
1
Hz
60 Hz
Features
Double Sealed Ball Bearings are Pre-Lubricated with a Special Formulation for Moisture Resistance and Provide Extra-Long Life
Motor Mounting Position
Vertical Shaft Up
Standards
CSA Certified, UL Listed
Nominal Efficiency
74 %
Motor Shaft Design
Flat
No. of Speeds
1
Motor Thermal Protection
Auto
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Nameplate Service Factor @ 60 Hz
1
Wattage
560 W
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Sub Application
Condenser Fan
Full Load Current @ 60 Hz
3.2/1.6 A
Product Type
Condenser Fan Motor
Bearing Type
Ball
Drive Type
Direct Drive
Insulation Class
F
Shaft Design
Flat
Capacitor Required
Capacitor Not Required

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 3.2/1.6 A Full Load Amps, 56HZ Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel
