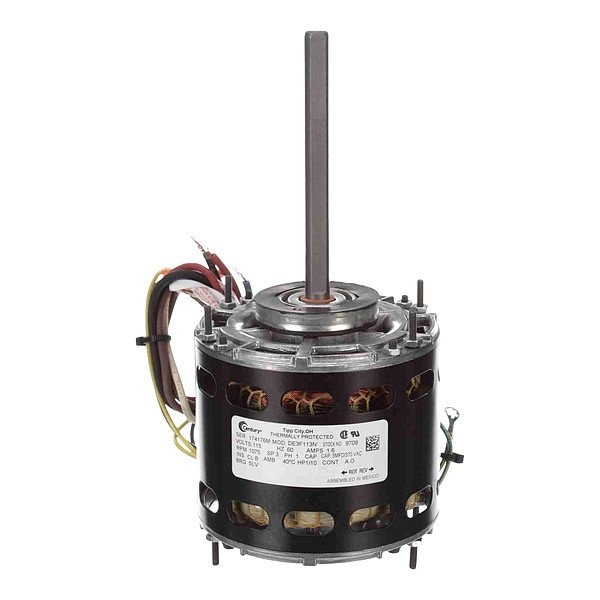

Century Direct Drive Blower Motor, 1/10 hp 9709A - main

Direct Drive Blower Motor, 1/10 hp

  • Mfr # 9709A

  • Zoro # G314235638

product price:  $148.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Air-Over
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
Overall Length
10 7/8 in
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9709A
Zoro #
G314235638
UPC #
786674077554
Country of Origin
Mexico

Dimensions

Overall Length
10 7/8 in
Shaft Dia.
1/2 in
Bolt Circle Dia.
4 5/8 in
Lead Length
13 in
Body Dia.
5 in
Manufacturers Warranty Length
2 yr
Shaft Length
6 in
Length Less Shaft
4 13/16 in
Frame Size
42
Shaft Diameter
1/2 in
Bolt Circle Diameter
4 5/8 in
Body Diameter
5 in

Details

Motor Enclosure Design
Open Air-Over
Motor Application
HVAC/R
Motor Design
Permanent Split Capacitor
Full Load Amps
1.7 A
HP
1/10
Standards
CSA, UL
Phase
Single
Voltage Compatibility
115V AC
Hz
60 Hz
Weight
9.13 lb
Motor Shaft Rotation
CW/CCW
No. of Speeds
3
Motor Service Factor
1
Capacitor Required
Capacitor Not Included
Nameplate RPM
1,075
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Keyed
Includes
Resilient Mounting Rings
Item
Direct Drive Blower Motor
Voltage
115V AC
Motor Bearings
Ball
Motor Mounting Position
All Angle
Frame
42
RPM Range
1,001-1,100
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Ins. Class
B
Motor Thermal Protection
Auto
Motor Mounting Type
Ring
Shaft Design
Keyed
Motor Enclosure Type
Open Air Over
Wattage
75 W
Application
Room Air Conditioner
Frequency
60 Hz
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.7 A
Manufacturers Warranty
2 yr
Sub Application
General Purpose
Product Type
Room Air Conditioner Motor
Usable @ 208V
Not Usable at 208V
Insulation Class
B
Drive Type
Direct Drive
Number of Speeds
3
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel

Description

Fan Coil and Air Conditioner Motors
