Shop CENTURY

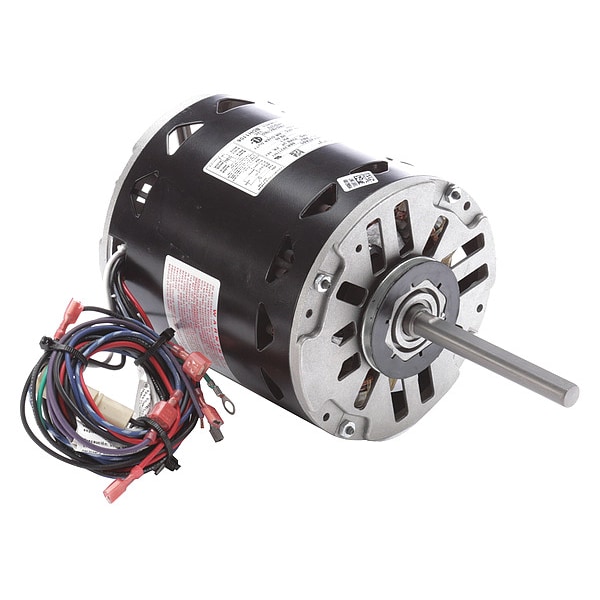

Direct Drive Fan/Blower Motor, 1 hp

  • Mfr # BDH1106

  • Zoro # G3261651

product price:
$
467.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
Motor Thermal Protection
Auto
Voltage
460V AC
Motor Service Factor
1
HP
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BDH1106
Zoro #
G3261651
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
4 1/2 in
Overall Length
11 3/32 in
Shaft Dia.
1/2 in
Length Less Shaft
6 19/32 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Lead Length
36 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48Y
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
11 3/32 in
Length
11 3/32 in

Details

Item
Fan and Blower Motor
Duty
Continuous
Motor Thermal Protection
Auto
Voltage
460V AC
Motor Service Factor
1
HP
1
Frame
48Y
Capacitor Required
Capacitor Included
Max. Ambient Temp.
40 Degrees C
No. of Speeds
3
Motor Application
Direct Drive Fan/Blower
Motor Mounting Type
Round Belly Band
Motor Mounting Position
Horizontal
RPM Range
1,001-1,100
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Ball
Motor Enclosure Design
Open Enclosed
Nameplate RPM
1,100
Motor Shaft Design
Flat
Voltage Compatibility
460V AC
Ins. Class
B
Motor Design
Permanent Split Capacitor
Standards
CSA Certified, UL Listed
Full Load Amps
3.2 A
Phase
Single
Hz
60 Hz
Usable @ 208V
Usable at 208V
Weight
22 lb
Output Watts
0.75 kW
Motor Frame Material
Steel
Usable @ 200V
Usable at 200V
Inverter Rated
No
Insulation Class
B
Frequency
60 Hz
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
3
Mounting Position
Horizontal
Motor Enclosure Type
Open
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Wattage
750 W
Sub Application
General Purpose
Inverter Rating
Not Inverter Rated
Shaft Design
Flat
Full Load Current @ 60 Hz
3.2 A
Bearing Type
Ball
Drive Type
Belt Drive

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,100, No. of Speeds 3, Voltage 460V AC, 3.2 A Full Load Amps, 48Y Frame, Output Watts 0.75 kW, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Enclosed, Motor Frame Material Steel, Inverter Rated No, Motor Mounting Position Horizontal
