Shop CENTURY

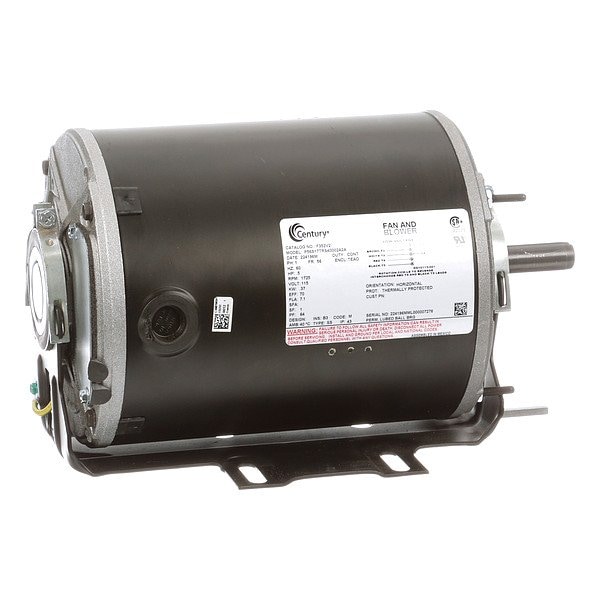

Direct Drive Blower Motor, 1/2 hp

  • Mfr # F352V2

  • Zoro # G212190398

product price:
$
476.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,725
Voltage
115V AC
Frame
56
Shaft Dia.
5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F352V2
Zoro #
G212190398
UPC #
786674074812
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6 13/16 in
Length Less Shaft
9 19/32 in
Overall Length
11 15/32 in
Frame Size
56
Shaft Diameter
5/8 in
Body Diameter
6.8 in
Wire Rope Length
11 15/32 in
Length
11 15/32 in

Details

HP
1/2
Nameplate RPM
1,725
Voltage
115V AC
Frame
56
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Mounting Position
Vertical/Horizontal
Nominal Efficiency
70 %
Motor Shaft Design
Keyed
Duty
Continuous
Item
Direct Drive Blower Motor
Voltage Compatibility
115V AC
Ins. Class
B
Motor Enclosure Design
Totally Enclosed Air-Over
Phase
Single
Motor Mounting Type
Resilient Base
Motor Service Factor
1
Motor Bearings
Ball
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Application
Blower; Fan
Hz
60 Hz
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Listed
Full Load Amps
7.1 A
Motor Design
Split-Phase
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Product Type
Fan and Blower Motor
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over
Weight
28 lb
Full Load Current @ 60 Hz
7.1 A
Usable @ 208V
Not Usable at 208V
Wattage
37 W
Sub Application
General Purpose
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Capacitor Required
Capacitor Not Required
Shaft Design
Keyed
Drive Type
Direct Drive
Mounting Position
All Angle
Application
Fan/Blower

Description

Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.1 A Full Load Amps, 56 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
