Shop CENTURY

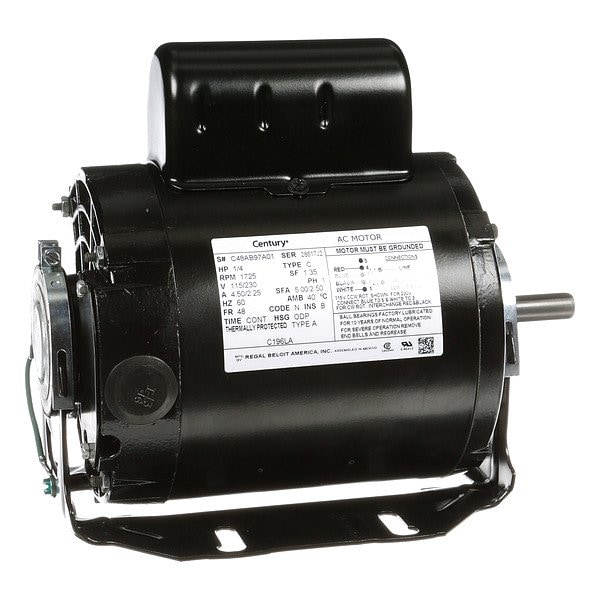

Direct Drive Blower Motor, 1/4 hp

  • Mfr # C196LA

  • Zoro # G812190378

product price:  $398.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C196LA
Zoro #
G812190378
UPC #
786674071330
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
1 9/16 in
Body Dia.
5 1/2 in
Length Less Shaft
7 25/32 in
Overall Length
9 11/32 in
Body Diameter
5.5 in
Frame Size
48
Shaft Diameter
1/2 in

Details

HP
1/4
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
48
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Mounting Type
Cushion Base
Motor Design
Capacitor-Start
Motor Service Factor
1.35
Capacitor Required
Capacitor Included
Voltage Compatibility
115V AC, 230V AC
Hz
60 Hz
Phase
Single
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
4.50/2.25 A
No. of Speeds
1
Ins. Class
B
Standards
CSA Certified, UL Listed
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Item
Direct Drive Blower Motor
Motor Enclosure Design
Open Dripproof
Motor Bearings
Ball
Motor Mounting Position
Vertical/Horizontal
Motor Application
Blower; Fan
Usable @ 208V
Not Usable at 208V
Drive Type
Belt Drive
Nameplate Service Factor @ 60 Hz
1.35
Wattage
0.19 kW
Number of Speeds
1
Insulation Class
B
Bearing Type
Ball
Frequency
60 Hz
Mounting Position
All Angle
Shaft Design
Flat
Sub Application
General Purpose
Application
Fan/Blower
Full Load Current @ 60 Hz
4.5/2.3 A
Product Type
Fan and Blower Motor
Frame Material
Steel
Weight
15 lb
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof

Description

Direct Drive Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 4.5/2.3 A Full Load Amps, 48 Frame, Output Watts 0.19 kW, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
