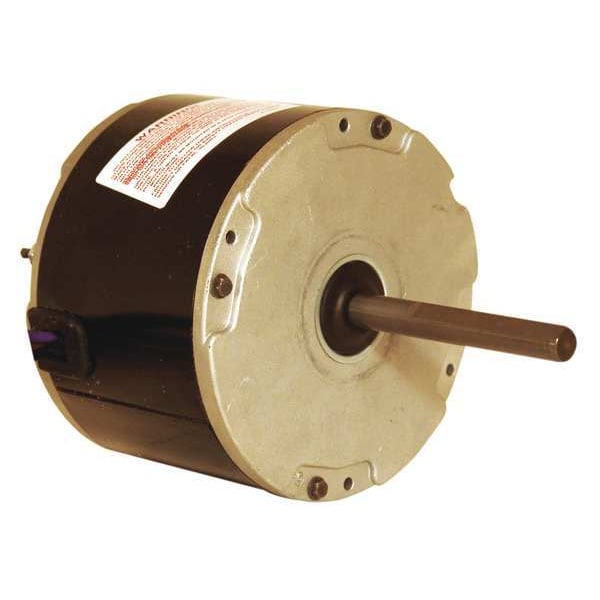

Direct Drive Blower Motor, 1/6 hp
Mfr # OGD1016
Zoro # G0752902
product price: $156.99
/ea
Free Shipping & Returns
Key Features
Bolt Circle Dia.
5 1/8 in
Capacitor Required
2MDV4
Motor Mounting Type
Stud
Ins. Class
B
Motor Service Factor
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
OGD1016
Zoro #
G0752902
UPC #
-
Country of Origin
Mexico
Dimensions
Bolt Circle Dia.
5 1/8 in
Overall Length
8 1/16 in
Manufacturers Warranty Length
1 yr
Stud Size
#8-32
Length Less Shaft
4 1/4 in
Shaft Dia.
1/2 in
Body Dia.
5.7 in
Shaft Length
3 13/16 in
Mounting Stud Length
1/4 in
Description
Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.0 A, 48Y Frame, OEM Replacement Brand Goodman, Replacement For B13400-251, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
