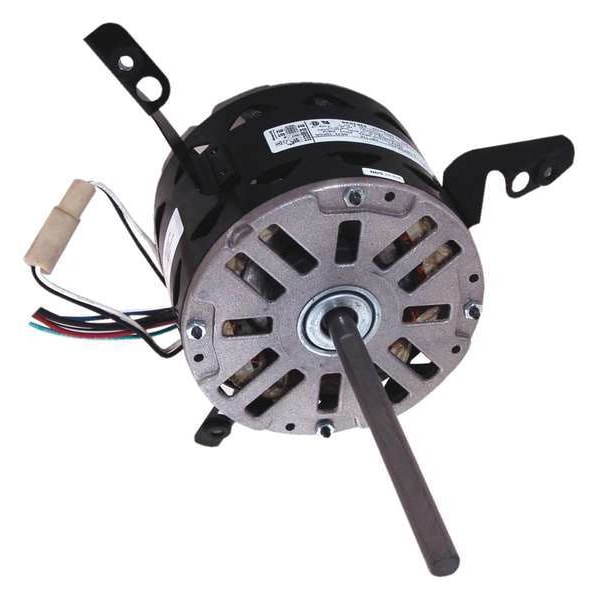

Motor, PSC, 1/3 HP, 1075,208-230V, 48Y, OAO

  • Mfr # FM1036
  • Zoro # G0934543
product price:
$
275.99
/ea
Free Shipping & Returns

Key Features

Application
Room Air Conditioner
Duty
Continuous
Motor Mounting Type
T-Flex
Phase
Single
Motor Shaft Rotation
CW/CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FM1036
Zoro #
G0934543
UPC #
-
Country of Origin
India
Application
Room Air Conditioner
Duty
Continuous
Motor Mounting Type
T-Flex
Phase
Single
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
No. of Speeds
3
Frame
48Y
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Max. Ambient Temp.
50 Degrees C
Hz
60 Hz
Motor Design
Permanent Split Capacitor
Nameplate RPM
1,075
Motor Service Factor
1
Motor Bearings
Ball
Motor Enclosure Design
Open Air-Over
Motor Sub Application
Room Air Conditioner
Ins. Class
B
Motor Mounting Position
Horizontal
Capacitor Required
Capacitor Not Included
Item
Room Air Conditioner Motor
Motor Shaft Design
Flat
HP
1/3
Standards
CSA Certified, UL Recognized
Voltage
208V AC to 230V AC
Motor Application
HVAC/R
RPM Range
1,001-1,100
Full Load Amps
2.04 A
Number of Shafts
1
Stud Quantity
4
Usable @ 208V
Usable at 208V
Mounting Holes
4
Weight
13 lb
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Number of Speeds
3
Mounting
Torsion Flex Bracket
Shaft Design
Flat
Ambient Temperature - Maximum
50 Degrees C
Insulation Class
B
Full Load Current @ 60 Hz
2.04 A
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Bearing Type
Ball
Wattage
250 W
Mounting Position
Horizontal
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Product Type
Room Air Conditioner Motor
Sub Application
General Purpose

Dimensions

Body Dia.
5 5/8 in
Shaft Length
6 in
Shaft Dia.
1/2 in
Length Less Shaft
4 3/8 in
Overall Length
10 3/8 in
Lead Length
26 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48Y
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 208-230V AC, 2.04 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type T-Flex
