Shop CENTURY

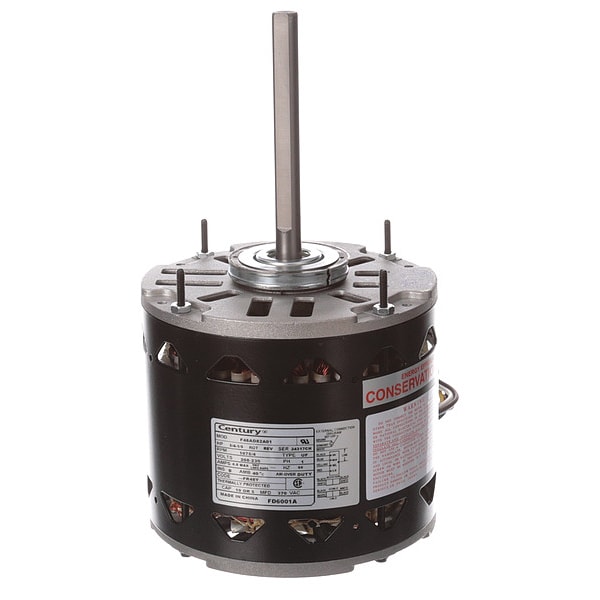

Motor, PSC, 3/4 HP, 1075, 208-230V, 48Y, Open

  • Mfr # FD6001A

  • Zoro # G3297603

product price:
$
168.99
/ea
Free Shipping & Returns

Key Features

Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Nameplate RPM
1,075
Stud Size
#8-32
No. of Speeds
4
Duty
Continuous
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD6001A
Zoro #
G3297603
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#8-32
Mounting Stud Length
5/8 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Resilient Ring Dia.
2 1/4 in
Bolt Circle Dia.
5 3/16 in
Body Dia.
5 5/8 in
Shaft Length
5 in
Overall Length
10 3/8 in
Length Less Shaft
5 13/16 in
Lead Length
36 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Resilient Ring Diameter
2 1/4 in
Frame Size
48
Bolt Circle Diameter
5 3/16 in
Body Diameter
5.6 in
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Details

Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Nameplate RPM
1,075
No. of Speeds
4
Duty
Continuous
Phase
Single
Motor Mounting Type
Band, Hole, Ring, Stud
Item
Fan and Blower Motor
Mounting Stud Location
4/Shaft End
RPM Range
1,001-1,100
Voltage
208-230V AC
Hz
60 Hz
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Full Load Amps
4 A
Motor Mounting Position
Horizontal
Motor Enclosure Design
Open Air-Over
Includes
Resilient Mounting Ring
Ring to Ring Center
5 7/16 in
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
HP
3/4 to 1/5
Ins. Class
B
Motor Service Factor
1
Motor Sub Application
Direct Drive Fan/Blower
Frame
48
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Capacitor Required
Capacitor Included
Motor Design
Permanent Split Capacitor
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Application
Fan/Blower
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting Holes
(4) #8-32
Motor Frame Material
Steel
Number of Shafts
1
Stud Quantity
4
Weight
16 lb
Number of Speeds
4
Mounting
Stud
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Frequency
60 Hz
Full Load Current @ 60 Hz
4.0 A
Manufacturers Warranty
1 yr
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Product Type
Fan and Blower Motor
Wattage
560W
Sub Application
General Purpose

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 4.0 A Full Load Amps, 48 Frame, Output Watts 560W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
