Shop CENTURY

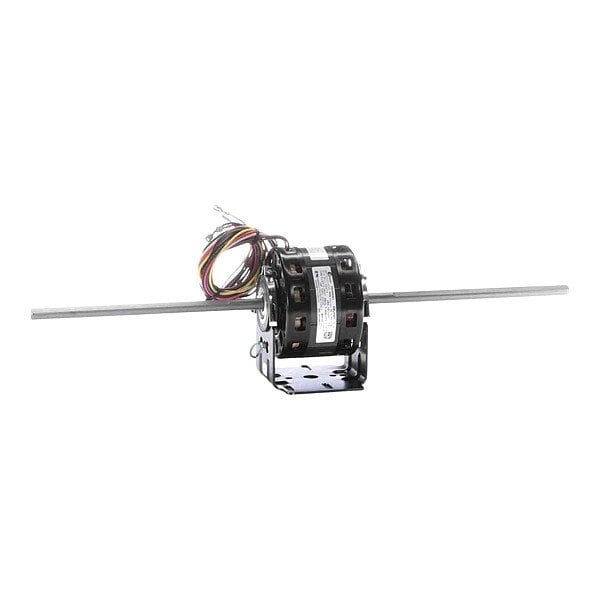

Direct Drive Blower Motor

  • Mfr # DBL6501A

  • Zoro # G614235642

product price:
$
154.99
/ea
Free Shipping & Returns

Key Features

Frame
42
Lead Length
38 1/2 in
Bolt Circle Dia.
4 5/8 in
Max. Ambient Temp.
104 Degrees F
RPM Range
1,001-1,100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DBL6501A
Zoro #
G614235642
UPC #
786674077677
Country of Origin
Mexico

Dimensions

Lead Length
38 1/2 in
Bolt Circle Dia.
4 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
3 17/32 in
Manufacturers Warranty Length
2 yr
Shaft Length
20 11/16 in
Body Dia.
5 in
Overall Length
24 7/32 in
Bolt Circle Diameter
4 5/8 in
Frame Size
42
Body Diameter
5 in
Shaft Diameter
1/2 in
Wire Rope Length
24 7/32 in
Length
24 7/32 in

Details

Frame
42
Max. Ambient Temp.
104 Degrees F
RPM Range
1,001-1,100
Number of Shafts
2
Voltage Compatibility
115V AC
Motor Enclosure Design
Totally Enclosed
Motor Bearings
Ball
Voltage
115V AC
Phase
Single
No. of Speeds
4
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Weight
14.13 lb
Motor Sub Application
Direct Drive Fan/Blower
Includes
Resilient Base
Motor Shaft Rotation
CCWLE
Hz
60 Hz
Motor Frame Material
Steel
Ins. Class
B
Full Load Amps
1.05 A, 1.25 A, 1.54 A, 2.1 A
Standards
CSA, UL
Motor Shaft Design
Keyed
Capacitor Required
Capacitor Not Included
Item
Direct Drive Blower Motor
Motor Design
Permanent Split Capacitor
Motor Mounting Type
Rigid Base
HP
1/10, 1/12, 1/15, 1/20
Nameplate RPM
1,075
Motor Service Factor
1
Motor Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1
Product Type
Room Air Conditioner Motor
Insulation Class
B
Drive Type
Direct Drive
Sub Application
Room Air Conditioner
Application
Room Air Conditioner
Usable @ 208V
Not Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
2 yr
Motor Enclosure Type
Open
Number of Speeds
4
Full Load Current @ 60 Hz
1.05 A, 1.25 A, 1.54 A, 2.1 A
Frame Material
Steel
Shaft Design
Flat
Bearing Type
Ball
Mounting Position
Horizontal
Wattage
75 W
Frequency
60 Hz

Description

Fan Coil and Air Conditioner Motors
