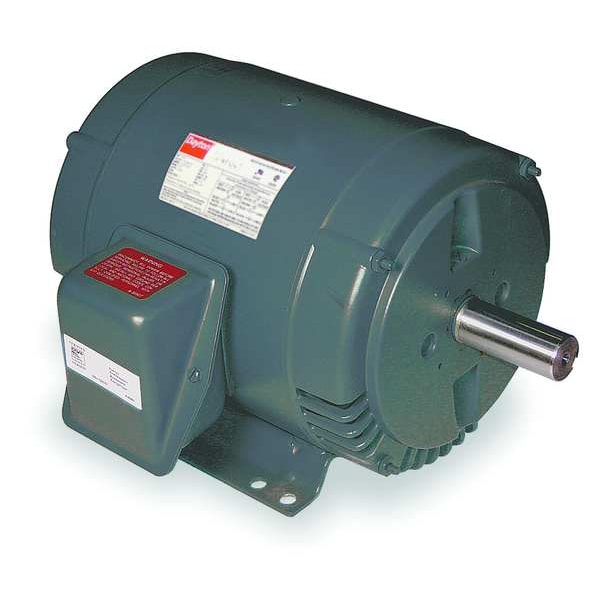

Mtr, 3 Ph, 3 HP, 1755, 208-230/460V, 182T, ODP

  • Mfr # 6XWJ0
  • Zoro # G3557102
product price:
$
619.99
/ea
Free Shipping & Returns

Key Features

Motor Application
HVAC/R
Motor Design
Three-Phase
Full Load Amps
8.5-8.0/4.0 A
Duty
Continuous
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XWJ0
Zoro #
G3557102
UPC #
190735373644
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/4 in
Body Dia.
7 7/8 in
Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Frame Size
182T
Shaft Diameter
1 1/8 in
Body Diameter
7.9 in
Overall Length
16 1/2 in
Wire Rope Length
16 1/2 in
Length
16 1/2 in

Details

Motor Application
HVAC/R
Motor Design
Three-Phase
Item
Fan and Blower Motor
Full Load Amps
8.5-8.0/4.0 A
Duty
Continuous
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
RPM Range
1,701-1,800
Motor Shaft Design
Keyed
HP
3
Motor Mounting Type
Rigid Base
Hz
60 Hz
Motor Thermal Protection
None
Motor Shaft Rotation
CW/CCW
Frame
182T
Phase
Three
Capacitor Required
Capacitor Not Required
Motor Sub Application
Direct Drive
Motor Bearings
Ball
No. of Speeds
1
Motor Enclosure Design
Open Dripproof
Ins. Class
F
Voltage
208V AC to 230V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,725
Motor Service Factor
1.15
Standards
CSA Certified (LR4211), CSA Certified Motor, UL Recognized (E46145)
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Stud Quantity
4
Conduit Box Position
F1
Usable @ 200V
Not Usable at 200V
Number of Shafts
1
Mounting
Rigid Base
Number of Speeds
1
Shaft Design
Keyed
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Full Load Current @ 60 Hz
8.5-8.0/4.0 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Drive Type
Belt Drive
Mounting Position
All Angle
Product Type
Fan and Blower Motor
Sub Application
General Purpose
Frame Material
Steel
Application
Fan/Blower
Nameplate Service Factor @ 60 Hz
1.15

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 8.5-8.0/4.0 A Full Load Amps, 182T Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
