Shop CENTURY

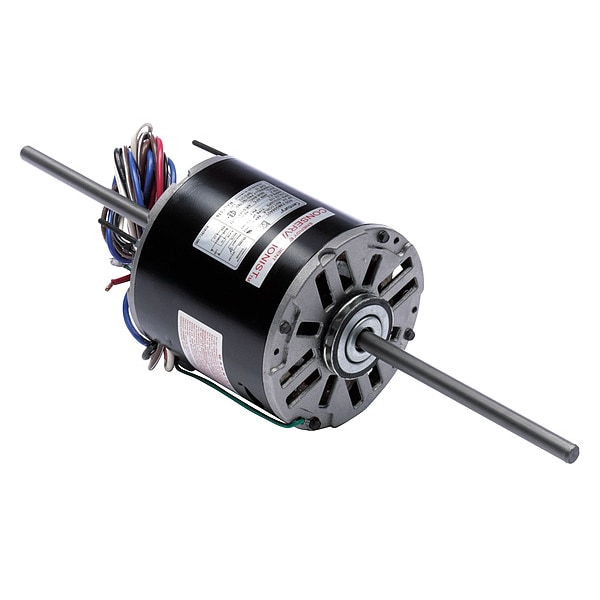

Direct Drive Fan/Blower Motor, 3/4 hp

  • Mfr # RAL1076

  • Zoro # G3261660

product price:  $446.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
Motor Mounting Position
Horizontal
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RAL1076
Zoro #
G3261660
UPC #
-
Country of Origin
India

Dimensions

Resilient Ring Dia.
2 1/4 in
Overall Length
20 in
Shaft Dia.
1/2 in
Mounting Stud Length
1 63/100 in
Body Dia.
5 5/8 in
Length Less Shaft
4 13/16 in
Shaft Length
7 13/32 in
Stud Size
#8-32
Lead Length
35 in
Frame Size
48Y
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/4 in

Details

Item
Room Air Conditioner Motor
Duty
Continuous
Motor Mounting Position
Horizontal
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Voltage
115V AC
Nameplate RPM
1,075
Voltage Compatibility
115V AC
Motor Application
Blower, Fan Coil, Room Air Conditioner
Motor Design
Permanent Split Capacitor
Motor Bearings
Ball
Phase
Single
Standards
CSA Certified, UL Listed
Capacitor Required
Capacitor Included
Motor Mounting Type
Resilient Ring/Extended Studs
Motor Thermal Protection
Auto
RPM Range
1,001-1,100
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Full Load Amps
8.2 A
Motor Service Factor
1
Ins. Class
A
No. of Speeds
3
Motor Enclosure Design
Semi Enclosed
Nominal Efficiency
67 %
HP
3/4
Frame
48Y
Motor Shaft Rotation
CCWLE
Motor Frame Material
Steel
Weight
20 lb
Output Watts
0.56 kW
Includes
Resilient Mounting Kit (615059-001)
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Inverter Rated
No
Sub Application
General Purpose
Drive Type
Direct Drive
Frame Material
Steel
Wattage
560 W
Insulation Class
A
Full Load Current @ 60 Hz
8.2 A
Shaft Design
Flat
Frequency
60 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Application
Room Air Conditioner
Product Type
Room Air Conditioner Motor
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
3
Inverter Rating
Not Inverter Rated

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, 8.2 A Full Load Amps, 48Y Frame, Output Watts 0.56 kW, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed, Motor Frame Material Steel, Inverter Rated No, Motor Mounting Position Horizontal
