Shop LEESON

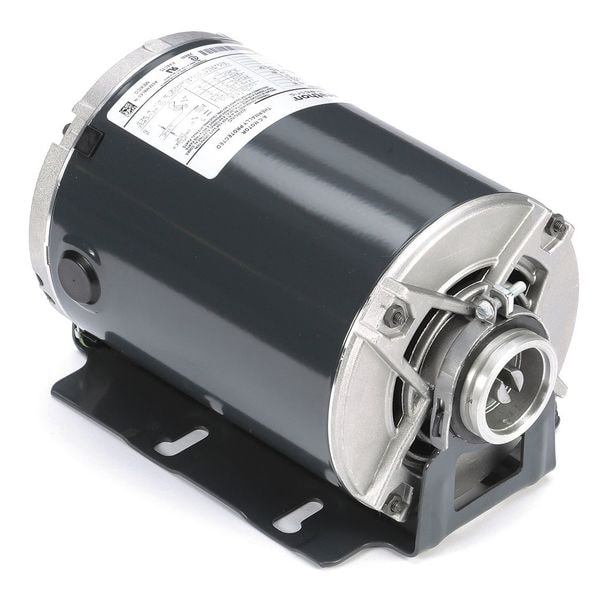

Pump Mtr, Split Ph, 3/4hp, 1725, 115/230, 48Y

  • Mfr # 5KH37PNA479X

  • Zoro # G3719861

product price:  $327.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
HP
3/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KH37PNA479X
Zoro #
G3719861
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
9 1/8 in
Shaft Length
1/4 in
Length Less Shaft
9 in
Height
5 13/16 in
Body Dia.
5.6 in
Shaft Dia. (In.)
5/8
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
5/8 in

Details

Item
Carbonator Pump Motor
Motor Design
Split-Phase
HP
3/4
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Standards
CE Mark, CSA Certified, UL Recognized
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Motor Sub Application
Carbonator Pump
Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Ins. Class
B
Full Load Amps
10.4/5.2 A
Phase
Single
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
Motor Frame Material
Steel
Nominal Efficiency
68.3 %
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Weight
22 lb
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Application
Pump
Mounting Position
All Angle
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Number of Wires
9
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Sub Application
Carbonator Pump
Number of Speeds
1
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Frame Material
Steel
Full Load Current @ 60 Hz
10.4/5.2 A

Description

Carbonator Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 10.4/5.2, Height 5 13/16 in, HP 3/4, Ins. Class B, Length Less Shaft 9 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
