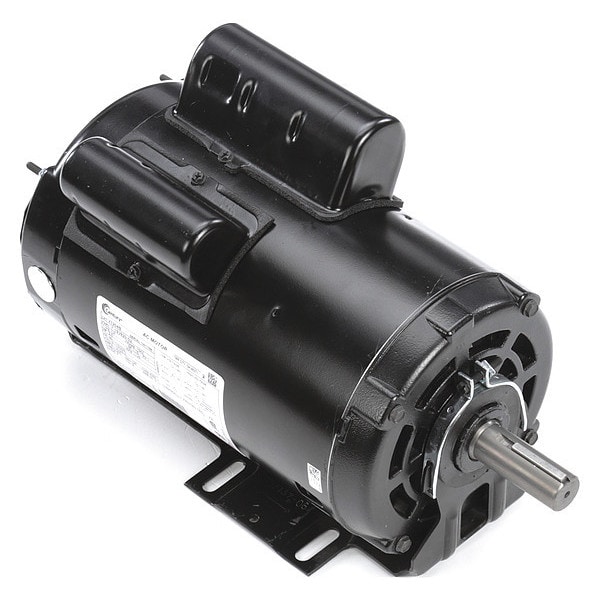

Evaporative Cooler Motor, 115/230V, Ball (Discontinued)
- Mfr # 56B17DRS40004A2A
- Zoro # G2340441
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
56B17DRS40004A2A
Zoro #
G2340441
UPC #
-
Country of Origin
Mexico
Dimensions
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
11 1/2 in
Ring Dia.
2 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Overall Length
13 7/8 in
Body Dia.
6 1/2 in
Description
Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 17.0/8.5 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Shaft Length 2 1/4 in
