Shop CENTURY

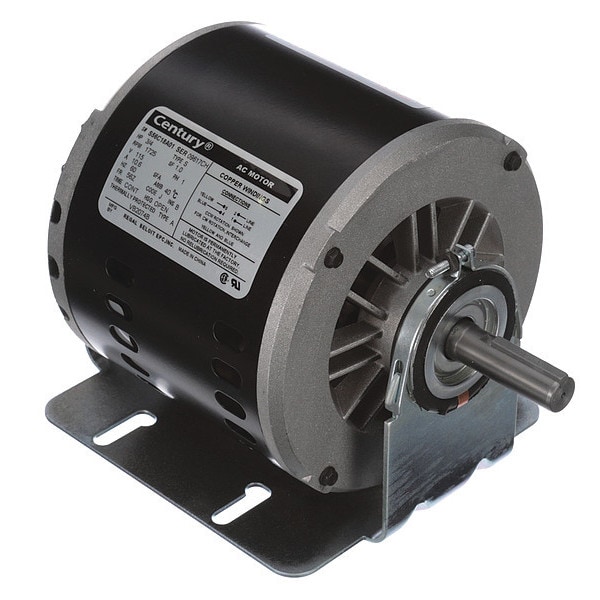

Evaporative Cooler Motor, 3/4 hp

  • Mfr # VB2074BV1

  • Zoro # G0423561

product price:
$
304.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
3/4
Full Load Amps
10.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VB2074BV1
Zoro #
G0423561
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 13/16 in
Shaft Dia.
5/8 in
Ring Dia.
2 1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
7 15/16 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56Z
Resilient Ring Diameter
2 1/2 in
Body Diameter
6.4 in
Wire Rope Length
9 13/16 in
Length
9 13/16 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
3/4
Full Load Amps
10.6 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
1
Frame
56
Motor Application
HVAC/R
Nameplate RPM
1,725
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Ring to Ring Center
7 7/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA, UL
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Usable @ 200V
Not Usable at 200V
Includes
Hardware, Switch Parts
Features
Moisture Resistant
Finish
Varnish
Number of Speeds
1
Wattage
560 W
Nameplate Service Factor @ 60 Hz
1
Application
Evaporative Cooler
Efficiency Rating
Standard Efficiency (IE1)
Drive Type
Direct Drive
Frequency
60 Hz
Capacitor Required
Capacitor Not Required
Frame Material
Steel
Product Type
Evaporative Cooler Motor
Full Load Current @ 60 Hz
10.6 A
Motor Enclosure Type
Open Drip Proof
Sub Application
Evaporative Cooler
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 10.6 A Full Load Amps, 56Z Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
