Shop CENTURY

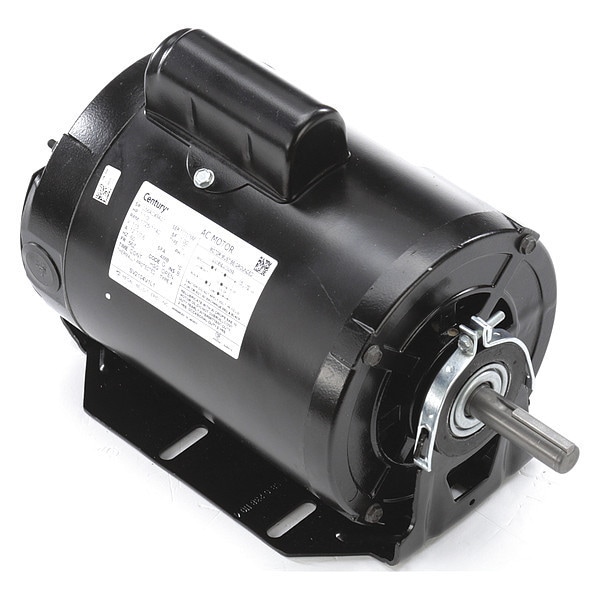

Evaporative Cooler Motor, 1 hp

  • Mfr # SV2104V1L1

  • Zoro # G5211105

product price:
$
368.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1
Full Load Amps
12.7/7.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SV2104V1L1
Zoro #
G5211105
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
12 1/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/8 in
Length Less Shaft
9 15/16 in
Body Dia.
6 1/2 in
Shaft Diameter
5/8 in
Frame Size
56Z
Body Diameter
6.5 in
Wire Rope Length
12 1/16 in
Length
12 1/16 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1
Full Load Amps
12.7/7.6 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Capacitor-Start
Hz
60 Hz
No. of Speeds
2
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Motor Bearings
Sleeve
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA Certified
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Output Watts
990 W
Motor Mounting Position
All Angle
Weight
35 lb
Includes
Governor Parts, Dust Caps, Terminal Board Cover
Features
Heavy Magnet Wire Insulation, Moisture Resistant Terminal Board
Motor Shaft Design
Keyed
Capacitor Required
Capacitor Included
Finish
Varnish
Number of Speeds
2
Insulation Class
B
Frequency
60 Hz
Wattage
750 W
Sub Application
Evaporative Cooler
Application
Evaporative Cooler
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
12.7/7.6 A
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Shaft Design
Keyed
Motor Enclosure Type
Open
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Evaporative Cooler Motor

Description

Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 12.7/7.6 A Full Load Amps, 56Z Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base
