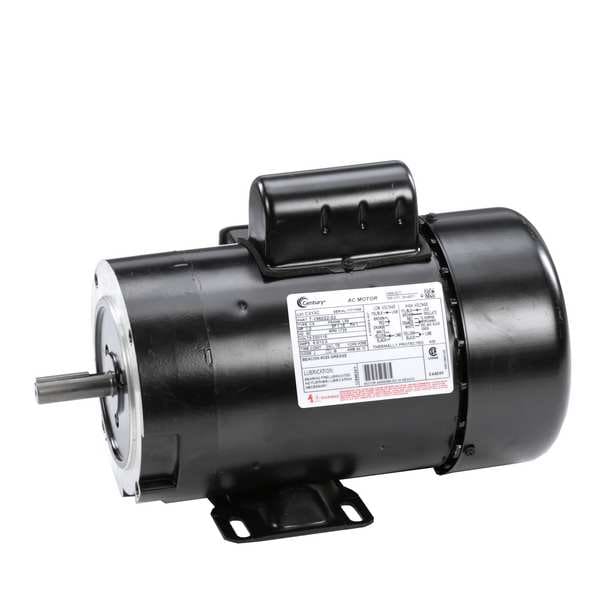

Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, L56 Frame
Mfr # C313C
Zoro # G200722815
product price:Â
$
456.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C313C
- Zoro #
- G200722815
- UPC #
- 786674015709
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 5/8 in
- Overall Length
- 13 3/8 in
- Length Less Shaft
- 11 7/16 in
- Shaft Length
- 1 15/16 in
- Wire Rope Length
- 13 3/8 in
- Length
- 13 3/8 in
Description
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/12.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
