  11. Motor, 1 HP, OEM Replacement Brand: Lennox Replacement For: 88C7401
Shop All OEM Replacement Motors
Century

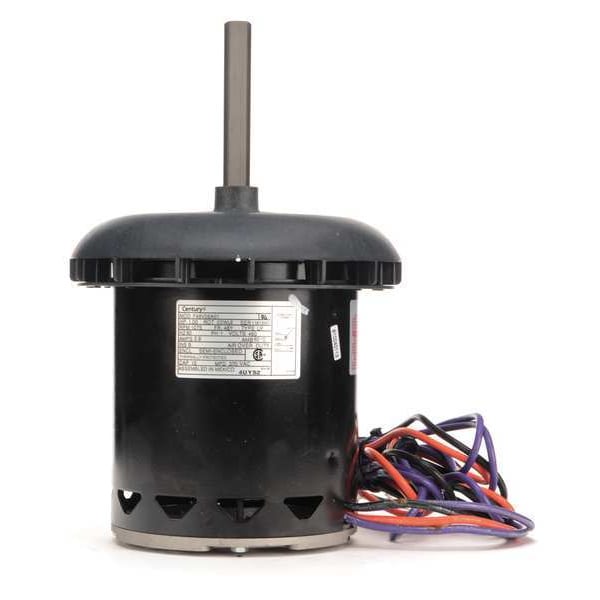

Motor, 1 HP, OEM Replacement Brand: Lennox Replacement For: 88C7401

original price: $420.99
13% off
new price: $364.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Frame 48Y
  • HP 1 HP
  • Motor Application OEM Replacement
  • Motor Design Permanent Split Capacitor
  • Motor Enclosure Design Semi Enclosed
See all product information

Product Information

Dimensions

Shaft Dia. 5/8"
Shaft Length 3-5/8"
Length Less Shaft 7 1/2 in
Body Dia. 5.7"
Manufacturers Warranty Length 1 yr.
Overall Length 11.49"

Details

Frame 48Y
HP 1 HP
Item Motor
Motor Application OEM Replacement
Motor Design Permanent Split Capacitor
Motor Enclosure Design Semi Enclosed
Motor Mounting Type Round Belly Band
Motor Shaft Rotation Counterclockwise Lead End
Motor Sub Application Condenser Fan Motor
Motor Thermal Protection Automatic
Nameplate RPM 1075 rpm
No. of Speeds 1
Number of Shafts 1
OEM Replacement Brand Lennox
Phase 1
RPM Range 1001-1100
Voltage 460V
Motor Bearings Ball
Replacement For 88C7401
Ins. Class B
Max. Ambient Temp. 60 Degrees C
Duty Air Over
Full Load Amps 2.9A
Capacitor Required 2MDV9
Standards UL Recognized, CSA Certified
Motor Shaft Design Flat
Hz 60 Hz
Motor Service Factor 1.00
Application Condenser Fan
Voltage Compatibility 208-230/460V AC, 460V AC
Weight 25 lb
Usable @ 200V No
Motor Frame Material Steel
Usable @ 208V No
Motor Mounting Position Vertical Shaft Up
Rotation CCWLE

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, Full Load Amps 2.9 A, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 88C7401, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band
