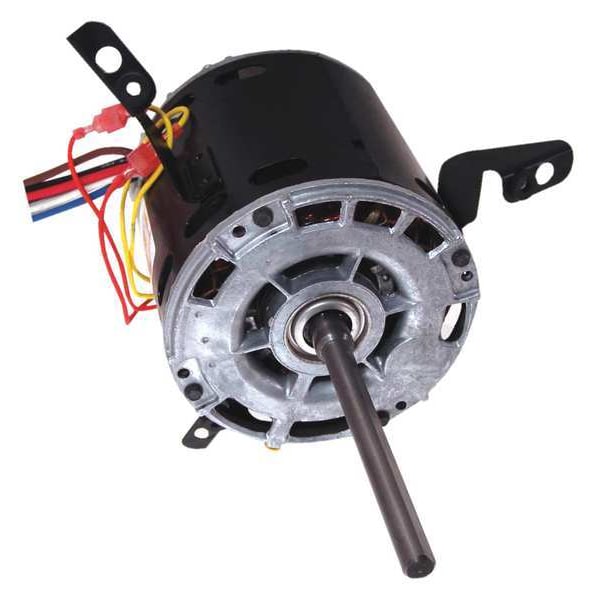

Motor, PSC, 1/6 HP, 1075 RPM, 115V, 48Y, OAO
$133.95 /ea
This item ships free. DetailsStandard ground shipping
Technical Specifications
| Zoro #: G0551266 Mfr #: 9647 | |
| Motor Sub Application: Direct Drive Fan/Blower | Item: Direct Drive Blower Motor |
| Motor Enclosure Design: Open Air-Over | Motor Bearings: Sleeve |
| Motor Design: Permanent Split Capacitor | Phase: 1 |
| Shaft Dia.: 1/2" | HP: 1/6 |
| Motor Application: HVAC/R | Motor Service Factor: 1.00 |
| Duty: Continuous | Ins. Class: B |
| Motor Thermal Protection: Auto | Standards: UL Recognized, CSA Certified |
| Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 | Includes: Reversing Plug |
| Application: Blowers, Fans and Air Circulators | Voltage: 115 |
| Motor Shaft Rotation: CW/CCW | Shaft Length: 5-1/2" |
| Motor Shaft Design: Flat | Hz: 60 |
| Motor Mounting Position: Horizontal | Capacitor Required: 2MDV4 |
| Motor Mounting Type: T-Flex | Nameplate RPM: 1075 |
| No. of Speeds: 3 | Max. Ambient Temp.: 40 Degrees C |
| Full Load Amps: 2.7 | Length Less Shaft: 4-1/4" |
| Body Dia.: 5-5/8" | Frame: 48Y |
| Country of Origin (subject to change): Mexico | |
Product Description
Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/6 HP, 1075 Nameplate RPM, Voltage 115, 2.7 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 3, Mounting Torsion Flex Bracket, Shaft Orientation Horizontal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8 In., Length Less Shaft 4-1/4 In., Shaft Dia. 1/2 In., Shaft Length 5-1/2 In.
