Century

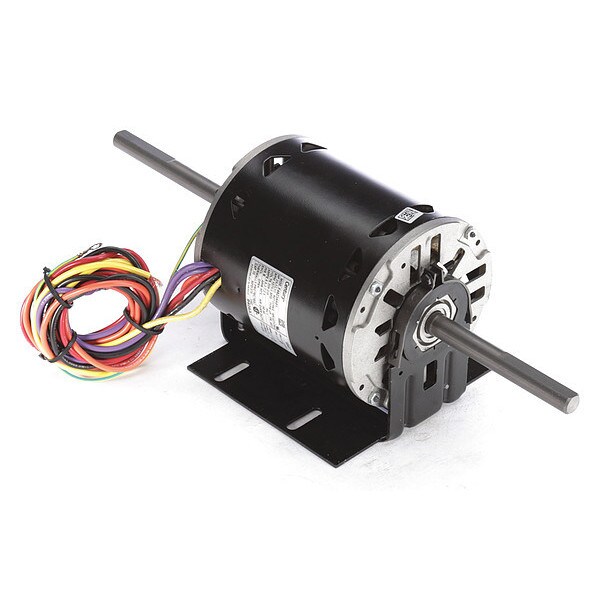

Motor, 3/4, 1/2, 1/3 HP, OEM Replacement Brand: Lennox Replacement For: 31C8201

Century Motor,  3/4,  1/2,  1/3 HP,  OEM Replacement Brand: Lennox Replacement For: 31C8201 9406A
Hover or click to zoom Tap to zoom
Key Features
  • Frame: 48Y
  • HP: 3/4, 1/2, 1/3 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Enclosed
  • Motor Mounting Type: Resilient Base
  • Motor Shaft Rotation: Counterclockwise Lead End
See full product details
$516.95

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Century #9406A Specifications

  • Frame: 48Y
  • HP: 3/4, 1/2, 1/3 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Enclosed
  • Motor Mounting Type: Resilient Base
  • Motor Shaft Rotation: Counterclockwise Lead End
  • Motor Sub Application: Direct Drive Fan/Blower
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1075 rpm
  • No. of Speeds: 3
  • Number of Shafts: 1
  • OEM Replacement Brand: Lennox
  • Phase: 1
  • RPM Range: 1001-1100
  • Shaft Dia.: 5/8"
  • Shaft Length: 5.3" x 6-1/2"
  • Voltage: 208-230V
  • Motor Bearings: Ball
  • Replacement For: 31C8201
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 6 1/4 in
  • Duty: Air Over
  • Full Load Amps: 6.6/3.7/2.5A
  • Body Dia.: 5.7"
  • Capacitor Required: 2MDV7
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 18"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Flat
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Fans and Blowers
  • Voltage Compatibility: 115/208-230V AC, 208-230V AC, 208-240V AC
  • Usable @ 208V: Yes
  • Mounting Stud Length: Not Applicable
  • Usable @ 200V: No
  • Motor Frame Material: Steel
  • Weight: 23 lb
  • Extended Thru-Bolts: No
  • Country of Origin (subject to change): Mexico

Description

Direct Drive Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 to 1/3 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, Full Load Amps 6.6/3.7/2.5, 48Y Frame, OEM Replacement Brand Lennox, Replacement For 31C8201, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
