Shop CENTURY

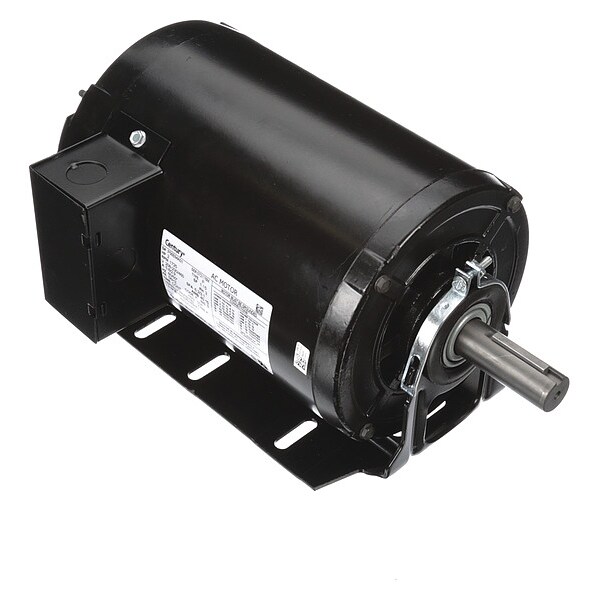

ODP Resilient Base Motor, 2 hp

  • Mfr # RB3204AV1

  • Zoro # G3261977

product price:  $624.99
/ea
Free Shipping & Returns

Key Features

Frame
56HZ
HP
2.0 HP
Motor Application
OEM Replacement
Motor Design
Polyphase
Motor Enclosure Design
Open Drip Proof
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RB3204AV1
Zoro #
G3261977
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
0.975"
Shaft Length
2.31"
Length Less Shaft
10 15/16 in
Body Dia.
6.47"
Manufacturers Warranty Length
1 yr
Overall Length
13.27"
Wire Rope Length
13 1/4 in
Shaft Diameter
7/8 in
Frame Size
56HZ

Details

Frame
56HZ
HP
2.0 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Polyphase
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible
Motor Sub Application
Fan and Blower HVAC/R Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1725 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
3
RPM Range
1,701-1,800
Voltage
208-230/460V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
5.8/2.9A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.15
Application
Fans and Blowers
Voltage Compatibility
208-230/460V AC
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Weight
38 lb
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal/Vertical
Compatible Brand
Century
Product Type
Fan and Blower Motor
Number of Speeds
1
Full Load Current @ 60 Hz
5.8/2.9 A
Frame Material
Steel
Mounting Position
All Angle
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Capacitor Required
Capacitor Not Included
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.8/2.9 A, 56HZ Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
