Century

MODEL-RFHP-48FR

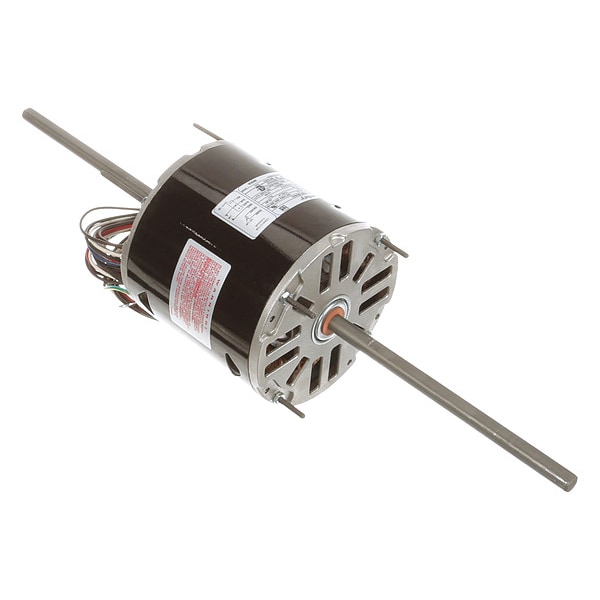

Century MODEL-RFHP-48FR 9600A
Hover or click to zoom Tap to zoom
Key Features
  • Frame: F48Y
  • HP: 3/4, 1/2, 1/3 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Semi Enclosed
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Counterclockwise Lead End
See full product details
$346.04

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Century #9600A Specifications

  • Frame: F48Y
  • HP: 3/4, 1/2, 1/3 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Semi Enclosed
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Counterclockwise Lead End
  • Motor Sub Application: Fan Coil / Room Air Conditioner Motor
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1075 rpm
  • No. of Speeds: 3
  • Number of Shafts: 1
  • Phase: 1
  • Shaft Dia.: 1/2"
  • Shaft Length: 8"
  • Voltage: 115V
  • Motor Bearings: Sleeve
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Duty: Air Over
  • Full Load Amps: 12.6, 8.8, 6.6 A
  • Body Dia.: 5.7"
  • Capacitor Required: Included
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 21-1/2"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Double Flat
  • Stud Size: #8-32
  • Hz: 60 Hz
  • Motor Service Factor: 1
  • Application: Air Conditioner
  • Country of Origin (subject to change): Mexico

Description

MODEL-RFHP-48FR
