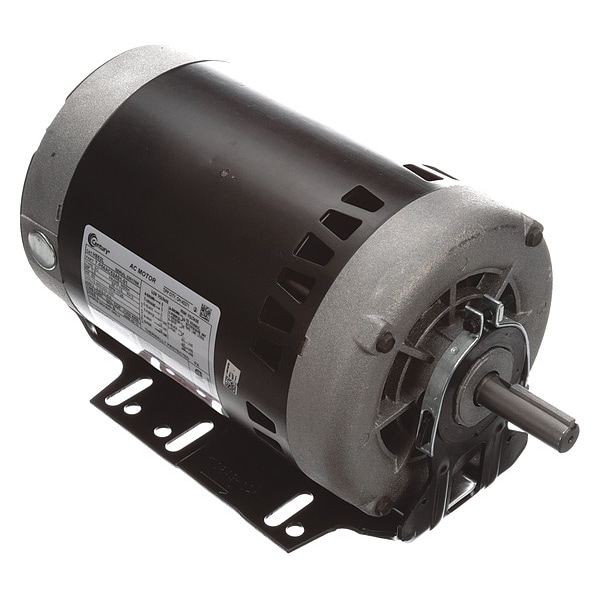

Century ODP Resilient Base Motor H852L - main

ODP Resilient Base Motor

  • Mfr # H852L

  • Zoro # G0791598

product price: $435.99
/ea
Free Shipping & Returns

Key Features

Frame
M56H
HP
1.0 HP
Motor Application
OEM Replacement
Motor Design
Polyphase, Induction Type, Single Or Dual Voltage
Motor Enclosure Design
Open Drip Proof
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H852L
Zoro #
G0791598
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8"
Shaft Length
1.883"
Length Less Shaft
10 3/4 in
Bolt Circle Dia.
5 13/16 in
Body Dia.
6.504"
Manufacturers Warranty Length
1 yr.
Overall Length
12.69"

Details

Frame
M56H
HP
1.0 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Polyphase, Induction Type, Single Or Dual Voltage
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
Reversible Counterclockwise
Motor Sub Application
Fan and Blower HVAC/R Motor
Motor Thermal Protection
Manual
Nameplate RPM
1725 rpm
No. of Speeds
Single and Two Speed
Number of Shafts
1
Phase
3
RPM Range
1,701-1,800
Voltage
460/200-230V
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
2.0/3.7-4.0A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Keyed
Hz
60 Hz
Motor Service Factor
1.15
Application
Fan and Blower
Voltage Compatibility
200V AC, 230V AC, 460V AC
Motor Mounting Position
Vertical/Horizontal
Duty Cycle
Continuous
Motor Frame Material
Rolled Steel
Usable @ 208V
Yes
Weight
27 lb
Usable @ 200V
Yes

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.0/3.7-4.0 A Full Load Amps, 56H Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
