Shop CENTURY

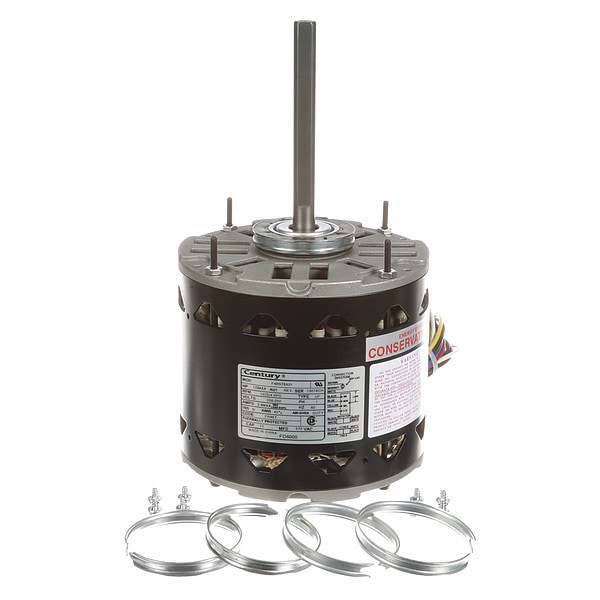

Motor, 1/2 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-23022-41

  • Mfr # FD6000

  • Zoro # G2033626

product price:  $170.99
/ea
Free Shipping & Returns

Key Features

Frame
48Y
HP
1/2 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FD6000
Zoro #
G2033626
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2"
Shaft Length
5 in
Length Less Shaft
5 3/8 in
Body Dia.
5.7"
Manufacturers Warranty Length
1 yr
Overall Length
10.36"
Wire Rope Length
10 3/8 in
Frame Size
48Y
Body Diameter
5.7 in
Shaft Diameter
1/2 in

Details

Frame
48Y
HP
1/2 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
Motor Mounting Type
Resilient Ring/Extended Studs
Motor Shaft Rotation
Reversible
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Automatic
Nameplate RPM
1075 rpm
No. of Speeds
4
Number of Shafts
1
OEM Replacement Brand
Rheem/Ruud
Phase
1
RPM Range
1001-1100
Voltage
208-230V
Motor Bearings
Sleeve
Replacement For
51-23022-41
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
3.9A
Capacitor Required
2MDV7
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blower
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Weight
16 lb
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Extended Thru-Bolts
No
Usable @ 200V
Not Usable at 200V
Number of Speeds
4
Compatible Brand
Rheem/Ruud
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
3.9 A
Frame Material
Steel
Sub Application
Fan/Blower
Motor Enclosure Type
Open Air Over
Insulation Class
B
Shaft Design
Flat

Description

Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, Full Load Amps 3.9 A, 48Y Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 51-23022-41, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
