Shop CENTURY

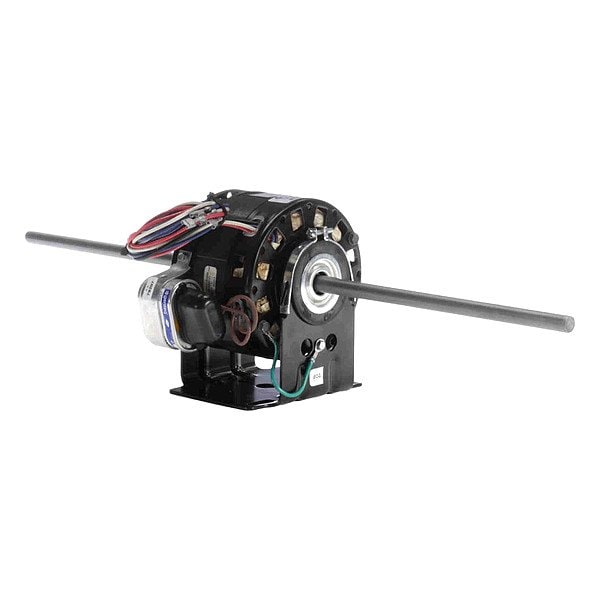

Room Air Conditioner Motor, 1/10 hp

  • Mfr # DBL4500V1A

  • Zoro # G114802955

product price:  $210.99
/ea
Free Shipping & Returns

Key Features

Frame
42
HP
1/10
Motor Application
Air Conditioner Motor, Fan Coil
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DBL4500V1A
Zoro #
G114802955
UPC #
786674077721
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
9 11/32 in
Length Less Shaft
3 9/16 in
Body Dia.
5 in
Overall Length
22 7/32 in
Lead Length
38 1/2 in
Frame Size
42
Mounting Stud Thread Size
#10-32
Shaft Diameter
1/2 in
Body Diameter
5 in
Wire Rope Length
22 7/32 in

Details

Frame
42
HP
1/10
Item
Room Air Conditioner Motor
Motor Application
Air Conditioner Motor, Fan Coil
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
CCWLE
Motor Sub Application
Fan Coil; Air Conditioner Motor
Motor Thermal Protection
Auto
Nameplate RPM
1,625
No. of Speeds
3
Number of Shafts
2
Phase
Single
RPM Range
1,601-1,700
Voltage
115V AC
Motor Bearings
Ball
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Full Load Amps
1.4 A
Capacitor Required
Capacitor Included
Standards
CSA, UL Listed
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1
Mounting Holes
#10-32
Includes Blade
Fan Included
Motor Frame Material
Rolled Steel
Voltage Compatibility
115V AC
Includes
Capacitor, Resilient Base
Weight
15.13 lb
Motor Mounting Position
Horizontal
Motor Enclosure Type
Open Air Over
Includes Fan
Fan Included
Bearing Type
Ball
Drive Type
Direct Drive
Product Type
Room Air Conditioner Motor
Frame Material
Steel
Shaft Design
Flat
Number of Speeds
3
Full Load Current @ 60 Hz
1.4 A
Sub Application
Room Air Conditioner
Usable @ 208V
Not Usable at 208V
Application
Room Air Conditioner
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Wattage
150 W
Mounting Position
Horizontal

Description

OEM Replacement Motors
