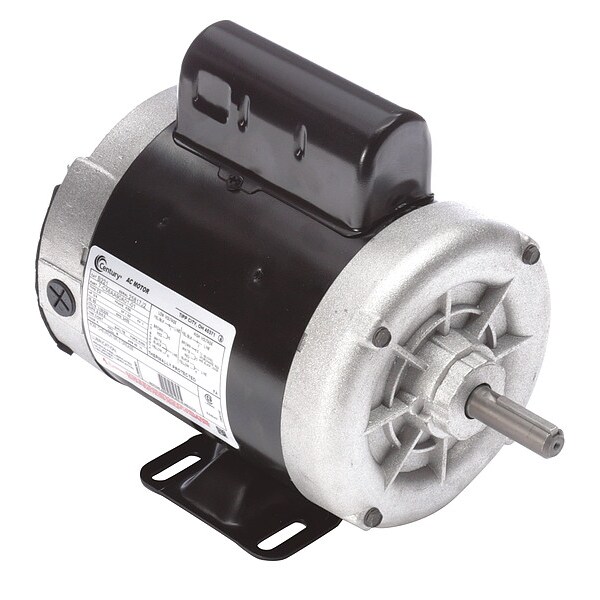

Permanent Split Capacitor Aeration Fan Motor, 3/4 HP, 115/230V AC Voltage, K56 Frame
Mfr # B221
Zoro # G0790161
product price: $387.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Rigid Base
HP
3/4
RPM Range
3,001-3,600
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
B221
Zoro #
G0790161
UPC #
-
Country of Origin
Mexico
Dimensions
Manufacturers Warranty Length
1 yr
Overall Length
11 7/16 in
Shaft Length
1 15/16 in
Length Less Shaft
9 1/2 in
Shaft Dia.
5/8 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0/4.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
