Shop FASCO

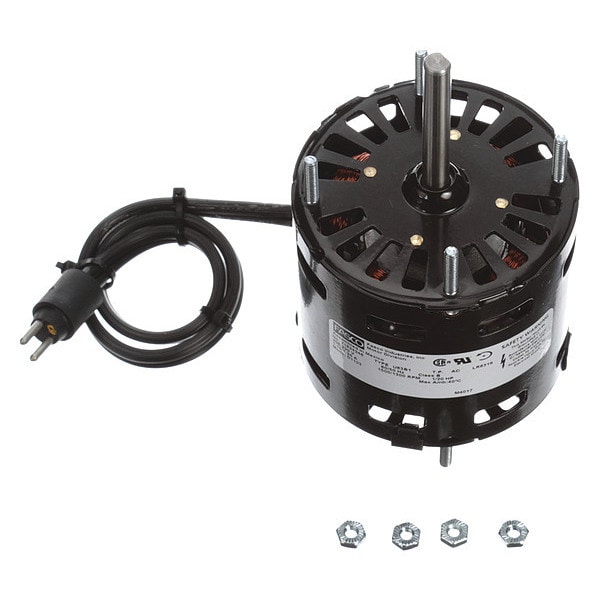

HVAC Motor, OAO, 1/20 HP, 1500/1300rpm, Stud

  • Mfr # D1103

  • Zoro # G7571304

product price:
$
95.79
/ea

Key Features

Voltage
208-230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1103
Zoro #
G7571304
UPC #
663001023081
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Cord Length
15 in
Shaft Length
2 1/4 in
Shaft Dia.
5/16 in
Length Less Shaft
3 9/16 in
Overall Length
5 9/16 in
Bolt Circle Dia.
2 7/8 in
Lead Length
14 in
Stud Size
#8-32
Mounting Stud Thread Size
#8-32
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Shaft Diameter
5/16 in
Wire Rope Length
5 9/16 in
Length
5 9/16 in

Details

Voltage
208-230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,401-1,500
Motor Shaft Design
Flat
Mounting Stud Location
4/Both Ends
Ins. Class
B
Motor Design
Shaded Pole
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Number of Shafts
1
Application
General Application
Full Load Amps
1.2/1.4 A
No. of Speeds
1
Motor Sub Application
OEM Replacement
Item
OEM Replacement Motor
Standards
CSA Certified, UL Recognized
Duty
Continuous
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Stud/Base Mtg. Pattern
2-27/32 in x 90 Degrees
Motor Service Factor
1
Phase
Single
Motor Shaft Rotation
CCWSE
Frame
3.3
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Plug Type
Round 2 Pin
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Mounting Holes
(8) #8-32
Weight
3 lb
RPM @ 50Hz
1,300 RPM
Mounting
Stud
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Sub Application
General Purpose
Shaft Design
Flat
Nameplate RPM @ 50 Hz
1,300 RPM
Drive Type
Direct Drive
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Wattage
40 W
Full Load Current @ 60 Hz
1.2/1.4 A
Frame Material
Steel
Frequency
60 Hz

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.2/1.4 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
