Shop All Vertical Mount Pump Motors
Century

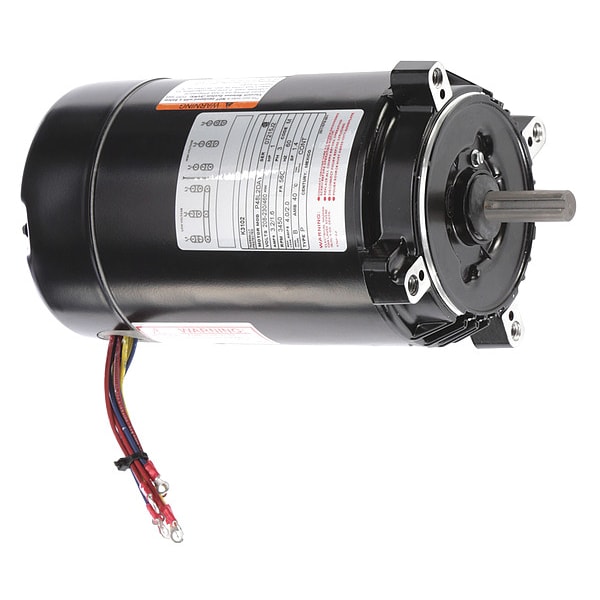

Pool Filter Motor

product price: $298.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Motor Enclosure Design Open Dripproof
  • HP 1
  • Nameplate RPM 3,450
  • Frame 56C
See all product information

Product Information

Dimensions

Length Less Shaft 10 7/8 in
Shaft Length 1 in
Overall Length 11 3/4 in
Shaft Dia. 5/8 in
Height 5 5/8 in
Body Dia. 5.6 in
Bolt Circle Dia. 5 7/8 in

Details

Item Pool Pump Motor
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
HP 1
Nameplate RPM 3,450
Frame 56C
Motor Shaft Rotation CW/CCW
Voltage 208-230/460V AC
RPM Range 3,001-3,600
Motor Bearings Ball
Phase Three
Standards CSA
Full Load Amps 3.2/1.60
Motor Mounting Type Face
Motor Thermal Protection None
Motor Mounting Position Horizontal
Motor Sub Application Pool Motor
Motor Application Pump
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Hz 60 Hz
Ins. Class B
Motor Frame Material Steel
Motor Service Factor 1.4
Weight 20 lb
Max. Ambient Temp. 40 Degrees C
Shaft Material Stainless Steel
Usable @ 208V Yes
Motor Shaft Design Keyed
No. of Speeds 1
Duty Cycle Continuous
Usable @ 200V No

Description

Pool Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 5 7/8 in, Duty Cycle Continuous, Frame 56C, Hz 60 Hz, Full Load Amps 3.2/1.60, Height 5 5/8 in, HP 1, Ins. Class B, Length Less Shaft 10 7/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

  • This item has been restricted from sale in the following states: NY
