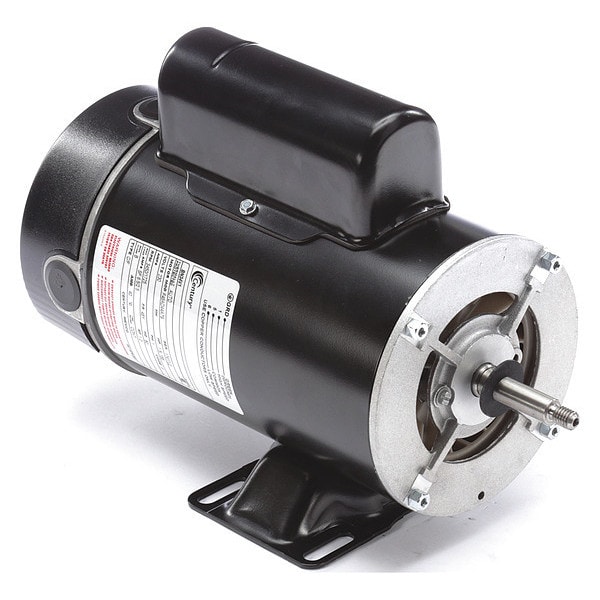

Pool Pump Motor, Capacitor-Start, 1 1/2, 3/16 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # BN34V1

  • Zoro # G4295006

product price:
$
412.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2, 3/16
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BN34V1
Zoro #
G4295006
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Shaft Dia.
1/2 in
Overall Length
13 3/16 in
Body Dia.
5.8 in
Length Less Shaft
10 13/16 in
Height
11 in
Shaft Dia. (In.)
1/2
Frame Size
48Y
Shaft Diameter
1/2 in
Body Diameter
5.8 in
Wire Rope Length
13 3/16 in
Length
13 3/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1 1/2, 3/16
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
3,450/1,725
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
230V AC
Phase
Single
Full Load Amps
6.5/2.5 A
Motor Mounting Type
Rigid Base
Hz
60 Hz
Motor Bearings
Ball
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Shaft
Threaded 3/8-16 UNC-2A RH
Ins. Class
B
Standards
CSA, UL
Finish
Black
Motor Thermal Protection
Auto
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump
Shaft Material
Steel
Includes
12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Threaded
Usable @ 200V
Not Usable at 200V
Weight
27 lb
Usable @ 208V
Not Usable at 208V
No. of Speeds
2
Duty Cycle
Continuous
Conduit Box Position
F3
Application
Pump
Number of Speeds
2
Shaft Type
Threaded 3/8-16 UNC-2A
Mounting Position
Horizontal
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Product Type
Pump Motor
Shaft Design
Threaded
Sub Application
Pool and Spa Pump
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Number of Wires
4
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.5/2.5 A
Frequency
60 Hz
Bearing Type
Ball

Description

Pool and Spa Pump Motor, Body Dia. 5.8 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 6.5/2.5, Height 11 in, HP 1 1/2, 3/16, Includes 12:00 and 3:00 O'Clock Conduit Entries, Four #8-32 Extended Shaft-End Thru-Bolts on 5.146 in Bolt Circle, Ins. Class B, Length Less Shaft 10 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Open Dripproof

Restrictions

This item has been restricted from sale in the following states: CA, NY
