Eaton

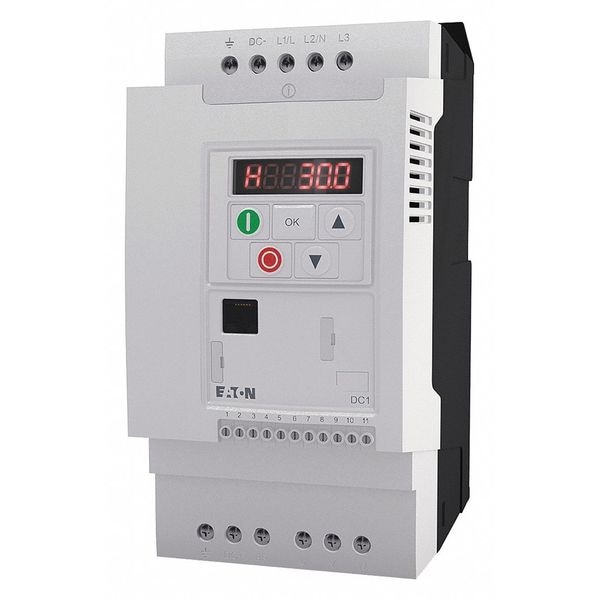

Variable Frequency Drive, 5 HP, 380-480V, Cutler-Hammer

original price: $976.99
10% off
new price: $871.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. HP 5 hp
  • Input Voltage 480V AC
  • Output Voltage 480V AC
  • Input Phase AC Three
  • Enclosure Open
See all product information

Product Information

Dimensions

Height 9.09 in
Width 4.21 in
Depth 5.98 in
Overall Depth 6 in
Overall Width 4 1/4 in
Overall Height 9 1/8 in

Details

Item Variable Frequency Drive
Max. HP 5 hp
Input Voltage 480V AC
Output Voltage 480V AC
Input Phase AC Three
Enclosure Open
Max. Output Amps 9.5 A
Output Phase AC Three
With Bypass / No Bypass No Bypass
With Line Contactor / No Line Contactor No Line Contactor
Key Pad Lockout Yes
Digital Readout Yes
Input Frequency 50/60 Hz
Starting Torque 1.75
Adjustable Acceleration Time 0 to 600 sec
Accepts Input Control Signal Yes
Standards IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5-1, CE, UL, cUL, RCM, Ukr SEPRO, EAC, RoHS, ISO 9001
Adjustable Deceleration Time 0 to 600 sec
Dynamic Braking No
Torque @ 1 Hz 1.75
Control Type Keypad
Displays LED Keypad
Display Type 7-Segement
Protection IP20
Start/Stop Control Programmable
Control Method U/f Control, Speed Control, Sensor less Vector Control
For Use With 3-Phase Inverter Duty Motor
Output Frequency Range 0 to 500 Hz
Enclosure Rating NEMA 0
Maximum Output Power 5 hp
Style Compact
Output Voltage Range 480V AC
Input Type Analog, Digital
Torque Application Constant Torque, Variable Torque
Output Type Analog, Digital
Color White
Maximum Output Current 9.5 A
Number of Outputs (1) Output - Analog or Digital + (1) Relay Output
Series DC1 Family
Brake Chopper Included Yes
Ethernet Port Included No
Input Voltage Range 380 to 480V AC
Application General-Purpose Microdrive, Machinery OEM Drive
Number of Inputs (4) Digital Inputs, (2) Analog Inputs

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 5 hp, Maximum Output Current 9.5 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz, Enclosure Rating NEMA 0
