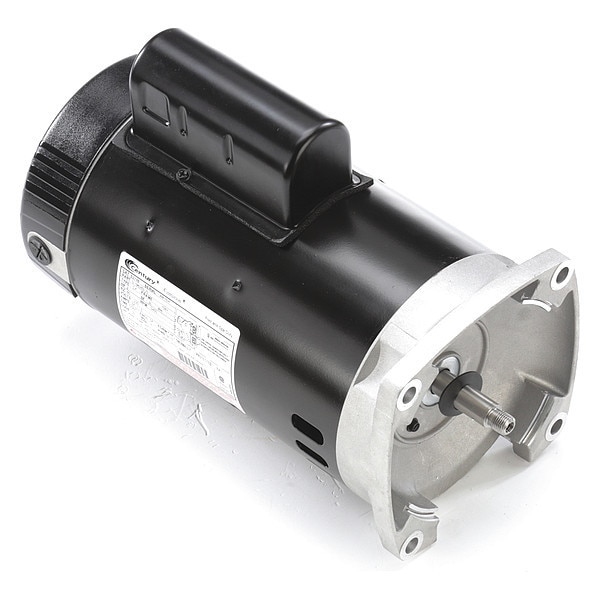

Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56Y Frame, 3,450 Nameplate RPM

Century Pool Pump Motor,  Permanent Split Capacitor,  2 HP,  56Y Frame,  3,450 Nameplate RPM B2748
Tap to zoom
Hover or click to zoom
$424.15
  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $424.15

Century #B2748 Specifications

  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 2
  • RPM Range: 3,001-3,600
  • Motor Service Factor: 1.3
  • Nameplate RPM: 3,450
  • Frame: 56Y
  • Motor Shaft Rotation: CCWSE
  • Voltage: 230V AC
  • Phase: Single
  • Motor Mounting Type: Face
  • Full Load Amps: 11.5
  • Includes: 30 MFD 370V AC 50/60Hz Capacitor
  • Motor Efficiency Group: Standard Efficient
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
  • Max. Ambient Temp.: 50 Degrees C
  • Ins. Class: F
  • Hz: 60
  • Finish: Black
  • Standards: UL (E44549)
  • Shaft: Threaded-1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
  • Shaft Material: Stainless Steel
  • Motor Thermal Protection: Auto
  • Motor Sub Application: Pool and Spa Pump
  • Shaft Dia.: 5/8 in
  • Motor Application: Pump
  • Motor Bearings: Ball
  • Shaft Length: 15/16 in
  • Usable @ 200V: No
  • Motor Shaft Design: Threaded
  • Usable @ 208V: No
  • Max. SF Amps: 11.5
  • Duty Cycle: Continuous
  • Overall Length: 13 3/8 in
  • Height: 9 in
  • Weight: 33 lb
  • No. of Speeds: 1
  • Length Less Shaft: 12 1/2 in
  • Motor Frame Material: Steel
  • Motor Mounting Position: Horizontal
  • Bolt Circle Dia.: 7 1/8 in
  • Application: Pool
  • Country of Origin (subject to change): China

Description

Pool Pump Motor, Single Phase, Motor Design Permanent Split Capacitor, 2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 230V AC, Full Load Amps 11.5, 56Y Frame, Usable @ 208V No, Usable @ 200V No, Max. SF Amps 11.5, 60 Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position Horizontal

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
