Shop CENTURY

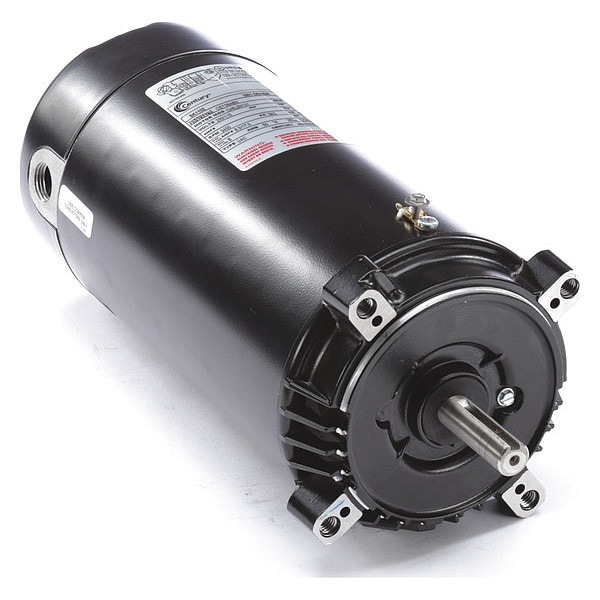

Pool Pump Motor, Capacitor-Start, 1 HP, 56C Frame, 3,450 Nameplate RPM

  • Mfr # SK1102

  • Zoro # G0612656

product price:
$
333.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SK1102
Zoro #
G0612656
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Shaft Dia.
5/8 in
Body Dia.
5.7 in
Overall Length
14 3/16 in
Length Less Shaft
13 9/16 in
Height
5 5/8 in
Bolt Circle Dia.
5 13/16 in
Shaft Dia. (In.)
5/8
Bolt Circle Diameter
5 13/16 in
Body Diameter
5.7 in
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
14 3/16 in
Length
14 3/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.5
Nameplate RPM
3,450
Frame
56C
Motor Shaft Rotation
CCWSE
Voltage
115/230V AC
Phase
Single
Full Load Amps
17.0/8.5 A
Motor Mounting Type
Face
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Standards
CSA, UL
Motor Efficiency Group
Standard
Shaft
Keyed
Finish
Black
Ambient Temperature
50 Degrees C
Shaft Material
Stainless Steel
Motor Thermal Protection
Auto
Ins. Class
B
Motor Flange Material
Aluminum
Motor Sub Application
Pool and Spa Pump
Motor Application
Pump
Max. Ambient Temp.
50 Degrees C
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Duty Cycle
Continuous
Motor Frame Material
Steel
Weight
27 lb
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Sub Application
Pool and Spa Pump
Ambient Temperature - Maximum
50 Degrees C
Shaft Design
Keyed
Number of Wires
9
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Insulation Class
B
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.5
Bearing Type
Ball
Application
Pump
Full Load Current @ 60 Hz
17.0/8.5 A
Frame Material
Steel
Number of Speeds
1

Description

Pool and Spa Pump Motor, Body Dia. 5.7 in, Bolt Circle Dia. 5 13/16 in, Duty Cycle Continuous, Finish Black, Frame 56C, Hz 60 Hz, Full Load Amps 17.0/8.5, Height 5 5/8 in, HP 1, Ins. Class B, Length Less Shaft 13 9/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: AZ, CA, FL, NY
