Shop CENTURY

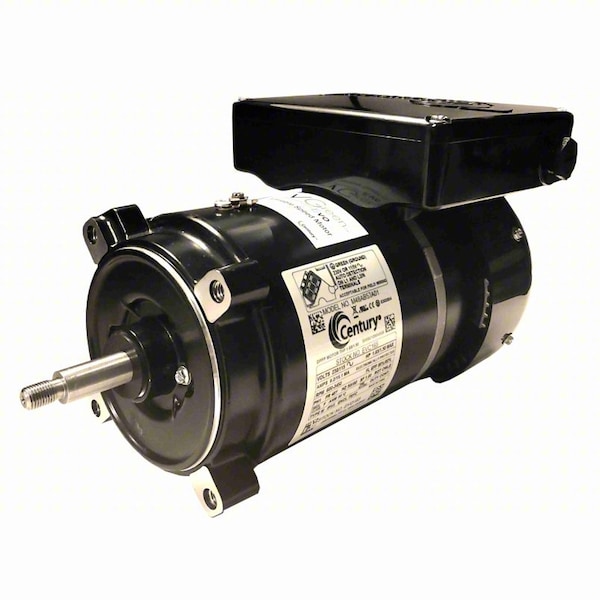

Pool Pump Motor, ECM, 1 1/2, 1.65 HP, 56J Frame, 600/3,450 Nameplate RPM

  • Mfr # EVC165

  • Zoro # G610374932

product price:
$
678.99
/ea
Free Shipping & Returns

Key Features

Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1 1/2, 1.65
Motor Service Factor
1
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVC165
Zoro #
G610374932
UPC #
-
Country of Origin
China

Dimensions

Body Dia.
6.5 in
Bolt Circle Dia.
5 7/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Height
8 in
Length Less Shaft
12 1/16 in
Overall Length
14 5/8 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56J

Details

Item
Pool Pump Motor
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1 1/2, 1.65
Motor Service Factor
1
RPM Range
3,001-3,600
Nameplate RPM
600/3,450
Frame
56J
Motor Shaft Rotation
CW
Phase
Single
Voltage
115/230V AC
Full Load Amps
10.5/17.7 A
Motor Mounting Type
Face
Full Load Amps @ 50Hz
10.5/17.7
Motor Shaft Design
Threaded
Motor Sub Application
Pool Motor
Motor Application
Pump
Duty Cycle
Continuous
Voltage Compatibility
115/230V AC, 120/240V AC
No. of Speeds
1
Standards
CE, UL
Ins. Class
F
RPM @ 50Hz
600-3,450
Hz
50 Hz
Service Factor @ 50Hz
1
Max. Ambient Temp.
122 Degrees F
Weight
21 lb
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Finish
Satin
Motor Frame Material
Steel
Nominal Efficiency
82 %
Shaft Material
Steel
NEMA Design
None
Voltage @ 50Hz
115/230V AC
HP @ 50Hz
1.65/1.50
Inverter Rated
Not Inverter Rated
Motor Thermal Protection
Auto
Stator Type
TEFC
Bearing Protection
Water Slingers
Part Winding Start Capable
Yes
Max. SF Amps
10.5/17.7
Usable @ 208V
Usable at 208V
Regreasable Bearings
Permanently Lubricated Bearings
Usable @ 200V
Not Usable at 200V
Series
VGreen Evo(R)
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal
Nameplate RPM @ 50 Hz
600-3,450 RPM
Insulation Class
F
Nameplate Voltage @ 50 Hz
115/230V AC
Bearing Lubrication Type
Permanently Lubricated Bearings
Shaft Design
Threaded
Service Factor Current
10.5/17.7
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
Full Load Current @ 50 Hz
10.5/17.7
Sub Application
Pool and Spa Pump
Features
Automatic Voltage Detection , 50/60 Hz, Class F and TEFC
Bearing Type
Ball
Bearing Protection Type
Water Slingers
Product Type
Pump Motor
Control Connector Configuration
4-Pin
Includes User Interface
User Interface Included
External Control Type
Compatible Automation Systems (Check Manual)
Number of Speeds
1
For Motor Replacement
Single-Speed Pump Motor
Nameplate Service Factor @ 50 Hz
1
User Interface Type
Single Push Button
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
10.5/17.7 A
Nameplate Horsepower @ 50 Hz
1 1/2 hp, 1 13/20 hp
Number of Daily Schedules
16
Application
Pump

Description

Pool Pump Motor, C-Face, 56J
