Shop CENTURY

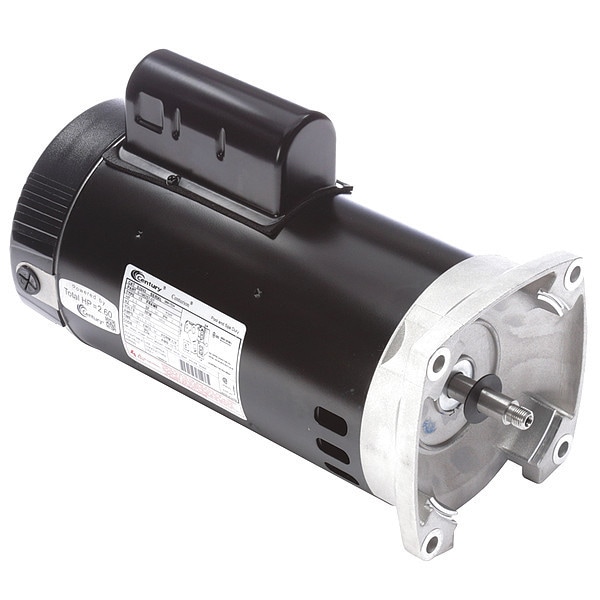

Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # B2843

  • Zoro # G4479027

product price:  $583.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
2
RPM Range
3,001-3,600
Motor Service Factor
1.3
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
B2843
Zoro #
G4479027
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 in
Height
9 in
Bolt Circle Dia.
7 1/16 in
Length Less Shaft
13 1/2 in
Overall Length
14 3/8 in
Shaft Dia. (In.)
5/8
Frame Size
56Y
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Bolt Circle Diameter
7 1/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
2
RPM Range
3,001-3,600
Motor Service Factor
1.3
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
208-230V AC
Full Load Amps
11.0/10.2
Motor Mounting Type
Face
Ins. Class
F
Finish
Black
Ambient Temperature
50 Degrees C
Motor Efficiency Group
Standard Efficient
Motor Thermal Protection
Auto
Standards
CSA, UL
Shaft Material
Stainless Steel
Motor Sub Application
Pool and Spa Pump
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Shaft
Threaded 1/2-20 UNF-2A RH
Motor Flange Material
Aluminum
Motor Bearings
Ball
Motor Application
Pump
Max. Ambient Temp.
50 Degrees C
Usable @ 200V
Not Usable at 200V
Weight
37 lb
Max. SF Amps
11.0
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Shaft Design
Threaded
Motor Frame Material
Steel
Conduit Box Position
F3
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
50 Degrees C
Product Type
Pump Motor
Number of Wires
7
Shaft Design
Threaded
Nameplate Service Factor @ 60 Hz
1.3
Frame Material
Steel
Insulation Class
F
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
11.0/10.2 A
Sub Application
Pool and Spa Pump
Frequency
60 Hz
Service Factor Current
11.0 A
Bearing Type
Ball
Mounting Position
Horizontal
Number of Speeds
1

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 7 1/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 11.0/10.2, Height 9 in, HP 2, Ins. Class F, Length Less Shaft 13 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 11.0, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA, NY
