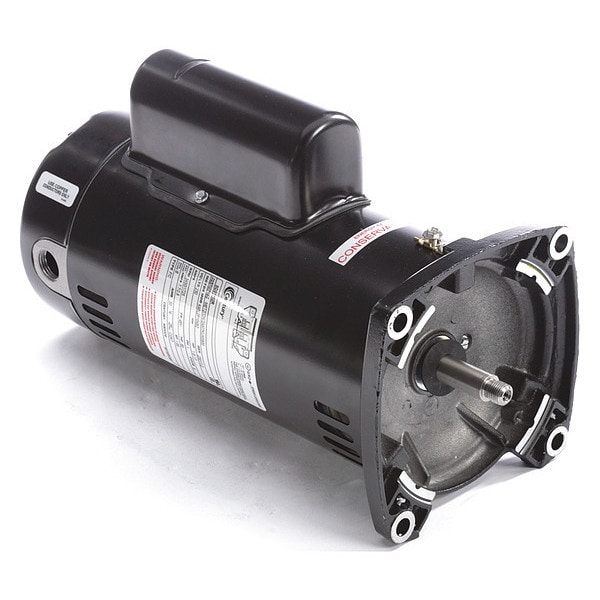

Pool Pump Motor, Permanent Split Capacitor, 1, 1/6 HP, 48Y Frame, 3,450/1,725 Nameplate RPM

  • Mfr # SQS1102R

  • Zoro # G2935222

product price:
$
534.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1, 1/6
RPM Range
3,001-3,600
Motor Service Factor
1.65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SQS1102R
Zoro #
G2935222
UPC #
-
Country of Origin
Mexico
Item
Square Flange Pool Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1, 1/6
RPM Range
3,001-3,600
Motor Service Factor
1.65
Nameplate RPM
3,450/1,725
Frame
48Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
230V AC
Motor Mounting Type
Face
Full Load Amps
7.7/2.8 A
Max. Ambient Temp.
50 Degrees C
Motor Efficiency Group
Standard Efficient
Ins. Class
B
Shaft
Threaded 1/2-20 UNF-2A RH
Shaft Material
Stainless Steel
Motor Application
Pump
Motor Sub Application
Pool and Spa Pump
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Motor Thermal Protection
Auto
Design
Two Compartment
Hz
60 Hz
Standards
California Energy Commission Appliance Regulations 2008, CSA, UL
Motor Bearings
Ball
Weight
31 lb
No. of Speeds
2
Motor Shaft Design
Threaded
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Warranty
2ACC9
Frequency
60 Hz
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.65
Insulation Class
B
Number of Wires
9
Shaft Design
Threaded
Frame Material
Steel
Ambient Temperature - Maximum
50 Degrees C
Product Type
Pump Motor
Bearing Type
Ball
Full Load Current @ 60 Hz
7.7/2.8 A
Application
Pump
Number of Speeds
2
Sub Application
Pool and Spa Pump
Motor Enclosure Type
Open Drip Proof

Description

Square Flange Pool Pump Motor, Body Dia. 5.6 in, Duty Cycle Continuous, Frame 48Y, Hz 60 Hz, Full Load Amps 7.7/2.8, Height 5 5/8 in, HP 1, 1/6, Ins. Class B, Length Less Shaft 12 15/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
