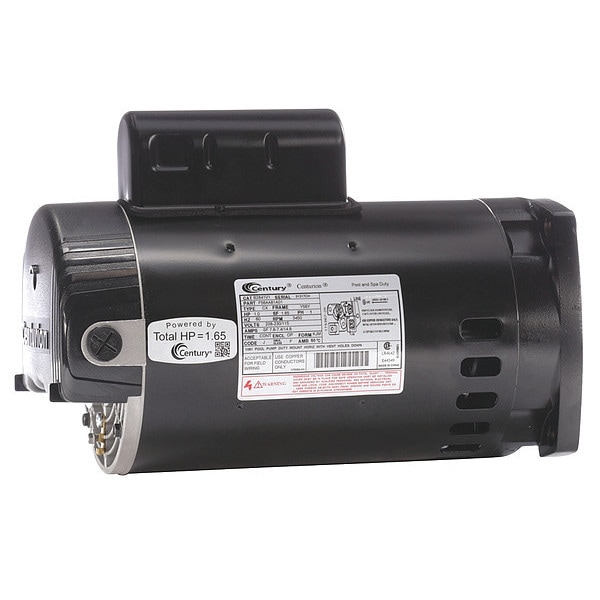

Pool Pump Motor, Permanent Split Capacitor, 1 HP, 56Y Frame, 3,450 Nameplate RPM

  • Mfr # B2841V1

  • Zoro # G8651411

product price:
$
411.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B2841V1
Zoro #
G8651411
UPC #
-
Country of Origin
China
Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
1
RPM Range
3,001-3,600
Motor Service Factor
1.65
Nameplate RPM
3,450
Frame
56Y
Motor Shaft Rotation
CCWSE
Phase
Single
Voltage
115/208-230V AC
Motor Mounting Type
Face
Full Load Amps
7.8-7.4/14.8 A
Shaft
Threaded
Standards
CSA (LR4642), UL (E44549)
Ins. Class
F
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Flange Material
Aluminum
Shaft Material
Stainless Steel
Max. Ambient Temp.
50 Degrees C
Motor Application
Pump
Ambient Temperature
50 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Sub Application
Pool and Spa Pump
Finish
Unfinished
Motor Bearings
Ball
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
Max. SF Amps
14.8
Duty Cycle
Continuous
Motor Shaft Design
Threaded
Usable @ 208V
Usable at 208V
Weight
30 lb
No. of Speeds
1
Motor Frame Material
Steel
Conduit Box Position
F3
Mounting Position
Horizontal
Frame Finish
Unfinished
Ambient Temperature - Maximum
50 Degrees C
Number of Wires
9
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Threaded
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Frame Material
Steel
Sub Application
Pool and Spa Pump
Product Type
Pump Motor
Insulation Class
F
Frequency
60 Hz
Full Load Current @ 60 Hz
7.8-7.4/14.8 A
Nameplate Service Factor @ 60 Hz
1.65
Service Factor Current
14.8 A

Description

Pool and Spa Pump Motor, Bolt Circle Dia. 7 3/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Unfinished, Frame 56Y, Hz 60 Hz, Full Load Amps 7.8-7.4/14.8, Height 9 in, HP 1, Ins. Class F, Length Less Shaft 12 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 14.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
