  11. Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56J Frame, 3,450 Nameplate RPM
Century

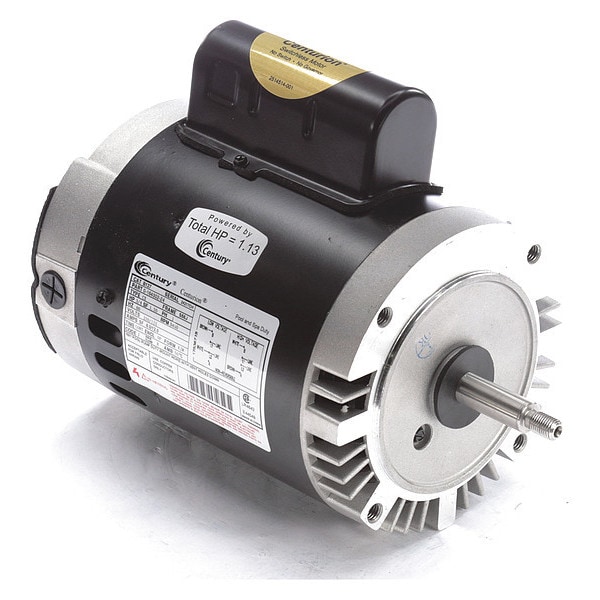

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56J Frame, 3,450 Nameplate RPM

Century Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56J Frame, 3,450 Nameplate RPM B127
Tap to zoom
Hover or click to zoom
$247.95
  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $247.95

Century #B127 Specifications

  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 3/4
  • Motor Service Factor: 1.5
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56J
  • Motor Shaft Rotation: CCWSE
  • Phase: Single
  • Voltage: 115/230V AC
  • Motor Mounting Type: Face
  • Full Load Amps: 6.0/12.0
  • Motor Sub Application: Pool and Spa Pump
  • Ins. Class: B
  • Motor Bearings: Ball
  • Motor Thermal Protection: Auto
  • Shaft Length: 2 1/2 in
  • Shaft Material: 303 Stainless Steel
  • Shaft: Threaded 7/16"-20 UNF-2A RH 11/16 in From End
  • Standards: CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable
  • Ambient Temperature: 50 Degrees C
  • Hz: 60
  • Shaft Dia.: 5/8 in
  • Motor Efficiency Group: Standard Efficient
  • Motor Flange Material: Aluminum
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
  • Motor Application: Pump
  • Finish: Black
  • Max. Ambient Temp.: 50 Degrees C
  • Length Less Shaft: 9 7/16 in
  • Motor Frame Material: Steel
  • No. of Speeds: 1
  • Usable @ 208V: No
  • Height: 11 in
  • Weight: 22 lb
  • Max. SF Amps: 12.0
  • Usable @ 200V: No
  • Overall Length: 12 in
  • Duty Cycle: Continuous
  • Motor Shaft Design: Threaded
  • Body Dia.: 6.5 in
  • Country of Origin (subject to change): China

Description

Pool Pump Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/12.0, 56J Frame, Usable @ 208V No, Usable @ 200V No, Max. SF Amps 12.0, 60 Hz, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
