Shop CENTURY

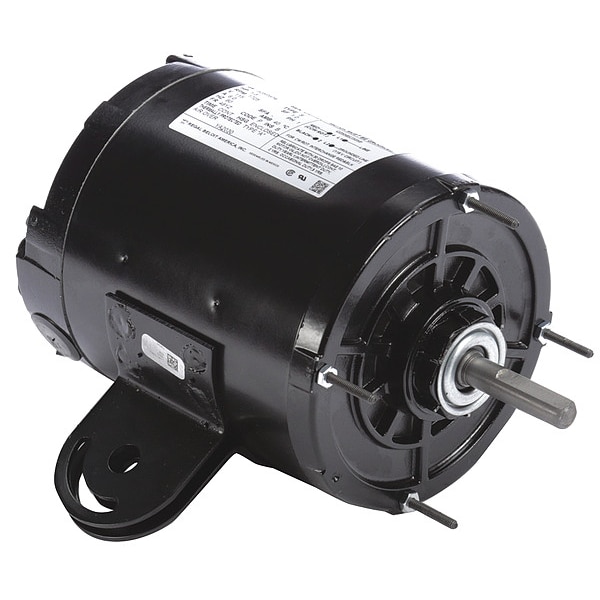

OEM Replc Motor, 115V AC, 10 1/4 in L, 6.0A

  • Mfr # YA2030

  • Zoro # G0792158

product price:  $247.99
/ea
Sold in multiples of 4 for $991.96
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YA2030
Zoro #
G0792158
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
8 3/8 in
Shaft Length
1 7/8 in
Bolt Circle Dia.
1 in
Overall Length
10 1/4 in
Shaft Diameter
1/2 in
Frame Size
48YZ
Bolt Circle Diameter
1 in
Wire Rope Length
10 1/4 in

Details

Motor Design
Split-Phase
HP
1/3
RPM Range
1,701-1,800
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Yoke
Item
OEM Replacement Motor
Usable @ 208V
Not Usable at 208V
Full Load Amps
6.0 A
Nameplate RPM
1,725
Extended Thru-Bolts
Yes
Standards
CSA, UL
Motor Thermal Protection
Auto
Duty Cycle
Continuous
Weight
15 lb
Ins. Class
B
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Frame Material
Rolled Steel
Motor Bearings
Sleeve
Phase
Single
Motor Application
General Purpose
Voltage Compatibility
115V AC
Motor Sub Application
General Purpose
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Shaft Design
Flat
Insulation Class
B
Number of Speeds
1
Full Load Current @ 60 Hz
6.0 A
Duty
Continuous
Ambient Temperature - Maximum
40 Degrees C

Description

OEM Replacement Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.0 A, 48YZ Frame, OEM Replacement Brand Not Applicable, Replacement For Not Applicable, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW
