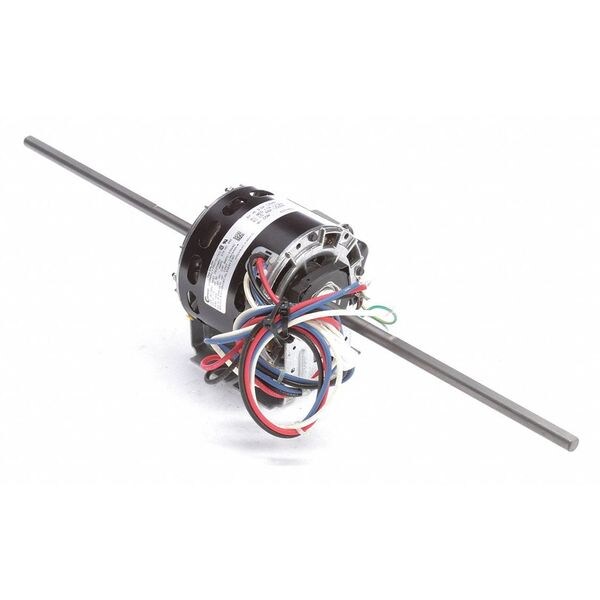

Room Air Cond Mtr, Shad Pol, OAO, 1500 RPM

CENTURY| Zoro #: G2344806| Mfr #: 955

$223.20 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2344806 Mfr #: 955
Motor Service Factor: 1.00Motor Bearings: Sleeve
Phase: 1Motor Sub Application: Room Air Conditioner
Motor Application: HVAC/RItem: Room Air Conditioner Motor
Motor Thermal Protection: AutoDuty: Continuous
Standards: UL(E22286), CSA(LR12645)Resilient Ring Dia.: 2-1/2"
Voltage: 115Includes: Unmounted 6 MFD 370VAC Capacitor
Ring to Ring Center: 4-1/2"Shaft Length: 9-15/16"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240Lead Length: 39 to 41"
Hz: 60Max. Ambient Temp.: 40 Degrees C
Capacitor Required: YesIns. Class: B
Length Less Shaft: 4-15/16"Nameplate RPM: 1500
Motor Shaft Rotation: CWLEShaft Dia.: 1/2"
HP: 1/6Motor Shaft Design: Flat
Full Load Amps: 2.0Motor Enclosure Design: Open Air-Over
Body Dia.: 5"Motor Mounting Type: Cradle Base
Motor Design: Shaded PoleFrame: 42Y
No. of Speeds: 3Country of Origin (subject to change): Mexico

Product Description

Room Air Conditioner Motor, Shaded Pole, Open Air-Over, Continuous, Cradle Base HP, 1500 Nameplate RPM, Voltage 115, 42Y Frame, Service Factor 1.0, 60 Hz, Full Load Amps 2.0, 1.1, 0.68, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, CWLE Rotation, 1 Phase, Cradle Base Mounting, Sleeve Bearings, Body Dia. 5 In., Length Less Shaft 4-15/16 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 9-15/16 In., Ring to Ring Center 4-1/2 In.
