Century

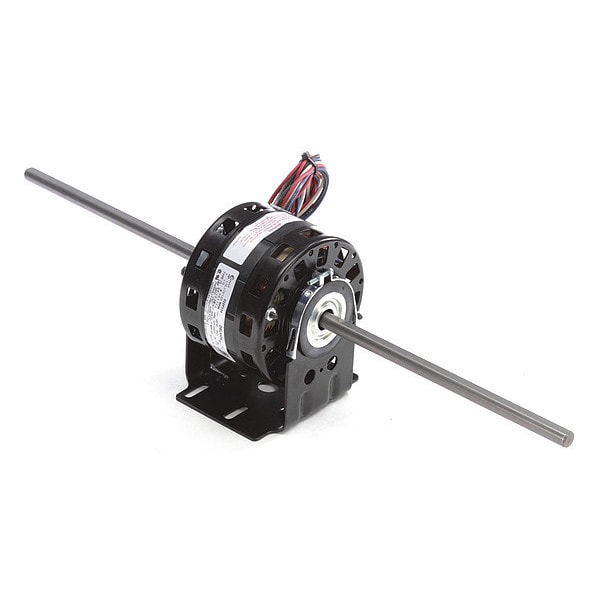

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM

original price: $200.99
5% off
new price: $189.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Shaded Pole
  • HP 1/10, 1/15, 1/20
  • RPM Range 1,501-1,600
  • No. of Speeds 3
  • Voltage 115V AC
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Length Less Shaft 4 1/16 in
Body Dia. 5 in
Shaft Length 9 5/16 in
Lead Length 38 1/2 in
Overall Length 22 in

Details

Motor Design Shaded Pole
HP 1/10, 1/15, 1/20
RPM Range 1,501-1,600
No. of Speeds 3
Voltage 115V AC
Motor Shaft Rotation CCWLE
Frame 42Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Cradle Base
Nameplate RPM 1,550
Ins. Class A
Motor Sub Application Room Air Conditioner
Capacitor Required No
Motor Bearings Sleeve
Motor Thermal Protection Auto
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps 3.5,1.7,1.4 A
Duty Continuous
Motor Shaft Design Flat
Max. Ambient Temp. 40 Degrees C
Item Room Air Conditioner Motor
Ring to Ring Center 4 2/25 in
Standards CSA Certified, UL Recognized
Hz 60 Hz
Motor Application HVAC/R
Motor Service Factor 1
Phase Single
Motor Mounting Position Horizontal
Usable @ 208V No
Usable @ 200V No
Weight 12 lb
Number of Shafts 2
Motor Frame Material Steel
Number of Speeds 3
Mounting Cradle Base

Description

Room Air Conditioner Motor, Single Phase, Motor Design Shaded Pole, 1/10, 1/15, 1/20 HP, Nameplate RPM 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 3.5,1.7,1.4 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 38 1/2 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
