Century

Motor, 1/3, 1/5 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: 51-23053-21

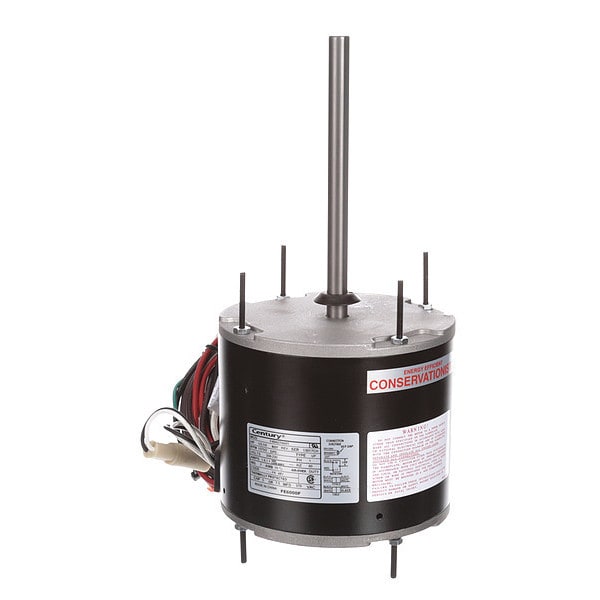

Century Motor,  1/3,  1/5 HP,  OEM Replacement Brand: Rheem/Ruud Replacement For: 51-23053-21 FE6000F
Hover or click to zoom Tap to zoom
Key Features
  • Frame: 48
  • HP: 1/3, 1/5 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Totally Enclosed
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Reversible
See full product details
$160.47

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Century #FE6000F Specifications

  • Frame: 48
  • HP: 1/3, 1/5 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Totally Enclosed
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Reversible
  • Motor Sub Application: Condenser Fan Motor
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1075 rpm
  • No. of Speeds: 2
  • Number of Shafts: 1
  • OEM Replacement Brand: Rheem/Ruud
  • Phase: 1
  • RPM Range: 1001-1100
  • Shaft Dia.: 1/2"
  • Shaft Length: 6-1/2"
  • Voltage: 208-230V
  • Motor Bearings: Ball
  • Replacement For: 51-23053-21
  • Ins. Class: F
  • Max. Ambient Temp.: 70 Degrees C
  • Length Less Shaft: 5 5/8 in
  • Duty: Air Over
  • Bolt Circle Dia.: 5-1/8"
  • Full Load Amps: 2.5, 1.4A
  • Body Dia.: 5.7"
  • Capacitor Required: 2MDV6
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 12.12"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Extended Studs
  • Stud Size: #8-32
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Condenser Fan
  • Mounting Stud Pattern: 3-5/8" x 3-5/8"
  • Voltage Compatibility: 115/208-230V AC, 208-230V AC, 208-240V AC
  • Mounting Stud Length: 1 1/4 in
  • Motor Frame Material: Steel
  • Weight: 16 lb
  • Usable @ 200V: No
  • Mounting Stud Location: 4/Opposite Lead End
  • Usable @ 208V: Yes
  • Extended Thru-Bolts: No
  • Country of Origin (subject to change): India

Description

Direct Drive Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 to 1/5 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 208-230V AC, Full Load Amps 1.80/1.10, 48 Frame, OEM Replacement Brand Rheem/Ruud, Replacement For 51-23053-21, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
