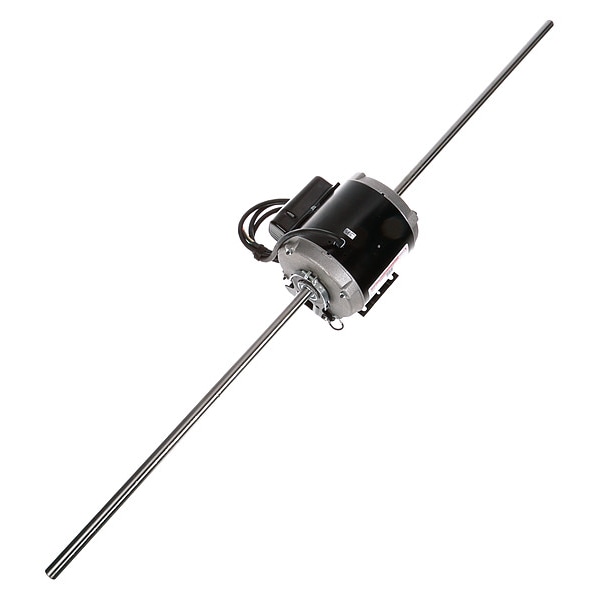

Motor, 1/6 HP, OEM Replacement Brand: Century Replacement For: Nesbitt Replacement Motor

  • Mfr # C034

  • Zoro # G0483117

product price:  $837.99
/ea
Free Shipping & Returns

Key Features

Frame
J56Z
HP
1/6 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C034
Zoro #
G0483117
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
0.749"
Shaft Length
21.6"
Length Less Shaft
8 3/32 in
Body Dia.
6-1/2"
Manufacturers Warranty Length
1 yr
Overall Length
51.28"
Body Diameter
6.5 in
Shaft Diameter
3/4 in
Frame Size
56Z
Wire Rope Length
51 9/32 in

Details

Frame
J56Z
HP
1/6 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Cushion Base
Motor Shaft Rotation
Clockwise
Motor Sub Application
Direct Drive Blower Motor
Motor Thermal Protection
Automatic
Nameplate RPM
800 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Century
Phase
1
RPM Range
0-1000
Voltage
115V
Motor Bearings
Ball
Replacement For
Nesbitt Replacement Motor
Ins. Class
A
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Full Load Amps
3A
Capacitor Required
Included
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Special Extension
Hz
60 Hz
Motor Service Factor
1.00
Application
Blower
Voltage Compatibility
115V AC
Includes
Capacitor
Motor Frame Material
Steel
Duty Cycle
Continuous
Weight
45 lb
Output Watts
0.13 kW
Bearing Protection
Thermally Protected
Motor Mounting Position
Cushion Base
Inverter Rated
No
Conduit Box Position
F2
Sub Application
Condenser Fan
Insulation Class
A
Bearing Type
Ball
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
3.00
Wattage
0.13 kW
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Not Inverter Rated
Number of Speeds
1
Drive Type
Direct Drive
Product Type
OEM Replacement Motor
Frame Material
Steel

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 800 RPM, No. of Speeds 1, Voltage 115V AC, 3.00 Full Load Amps, 56Z Frame, Output Watts 0.13 kW, 60 Hz Hz, Replacement For Nesbitt Replacement Motor, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
