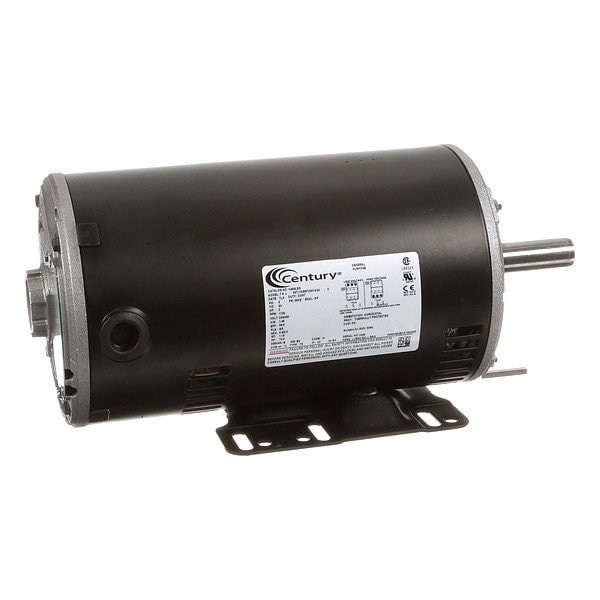

Three-Phase General Purpose Motor, 2 HP, 56HZ Frame, 230/460V Voltage, 1,725 Nameplate RPM

  • Mfr # H886LES

  • Zoro # G411931013

product price:  $760.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1,725
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H886LES
Zoro #
G411931013
UPC #
786674074201
Country of Origin
Mexico

Dimensions

Length Less Shaft
12 5/8 in
Overall Length
14 7/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Frame Size
56HZ
Shaft Diameter
7/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1,725
Voltage
230/460V
Motor Mounting Type
Rigid Base
Full Load Amps
6.0/3.0 A
Frame
56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1725
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CE, CSA Certified, UL Listed
Weight
60 lb
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Thermal Protection
None
Duty Cycle
Continuous
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
2,935/2,965 RPM
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Product Type
General Purpose Motor
Number of Speeds
1
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Full Load Current @ 60 Hz
6.0/3.0 A
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Shaft Design
Keyed
Insulation Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1,725, Frame 56HZ, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, 1725, CE, CSA Certified, UL Listed
