Shop CENTURY

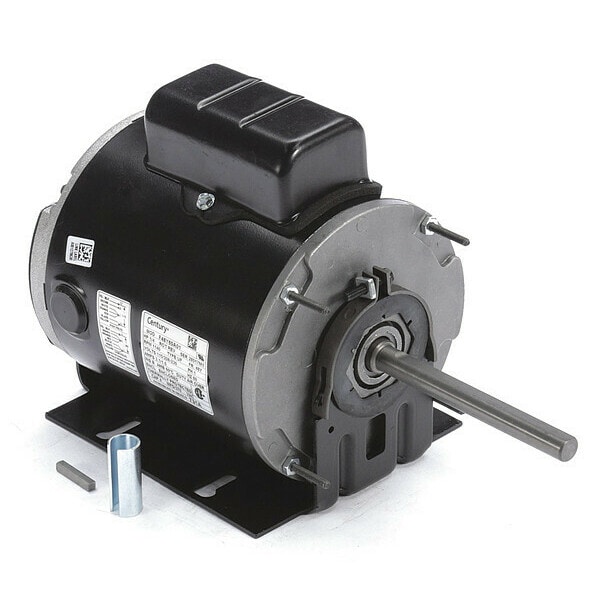

Unit Heater Motor, 1/4 hp

  • Mfr # 731A

  • Zoro # G2373892

product price:
$
413.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/4
Nameplate RPM
1,140
Voltage
115/208-230V AC
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
731A
Zoro #
G2373892
UPC #
-
Country of Origin
India

Dimensions

Overall Length
11 13/16 in
Ring Dia.
2 1/4 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
5 3/32 in
Length Less Shaft
7 1/4 in
Lead Length
5 1/2 in
Resilient Ring Dia.
2 1/4 in
Stud Size
8-32
Shaft Diameter
1/2 in
Frame Size
48Y
Resilient Ring Diameter
2 1/4 in
Mounting Stud Thread Size
#10-32
Body Diameter
5.6 in
Wire Rope Length
11 13/16 in
Length
11 13/16 in

Details

Item
Unit Heater Motor
Motor Design
Permanent Split Capacitor
HP
1/4
Nameplate RPM
1,140
Voltage
115/208-230V AC
Frame
48Y
Motor Enclosure Design
Totally Enclosed
Motor Mounting Type
Cradle Base
RPM Range
1,101-1,200
Motor Application
HVAC/R
Ins. Class
B
Application
Unit Heater
Ring to Ring Center
6 7/8 in
Includes
Resilient Base
Motor Bearings
Ball
Duty
Continuous
Motor Thermal Protection
Auto
Phase
Single
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Motor Service Factor
1
Mounting Stud Pattern
3 5/8 in x 3 5/8 in SE
Motor Sub Application
Unit Heater
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Full Load Amps
3.1, 1.6 A
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
60 Degrees C
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Motor Mounting Position
All Angle
Motor Frame Material
Steel
Stud Quantity
4
Motor Shaft Design
Flat
Weight
17 lb
Capacitor Required
Capacitor Included
Mounting Holes
(4) #10-32
Number of Shafts
1
Mounting
Cradle Base
Number of Speeds
1
Ambient Temperature
60 Degrees C
Nameplate Service Factor @ 60 Hz
1
Wattage
190 W
Insulation Class
B
Shaft Design
Flat
Mounting Position
All Angle
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
60 Degrees C
Frequency
60 Hz
Bearing Type
Ball
Frame Material
Steel
Drive Type
Direct Drive
Product Type
Unit Heater Motor
Sub Application
Unit Heater
Full Load Current @ 60 Hz
3.1/1.6 A

Description

Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/208-230V AC, 3.1, 1.6 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
