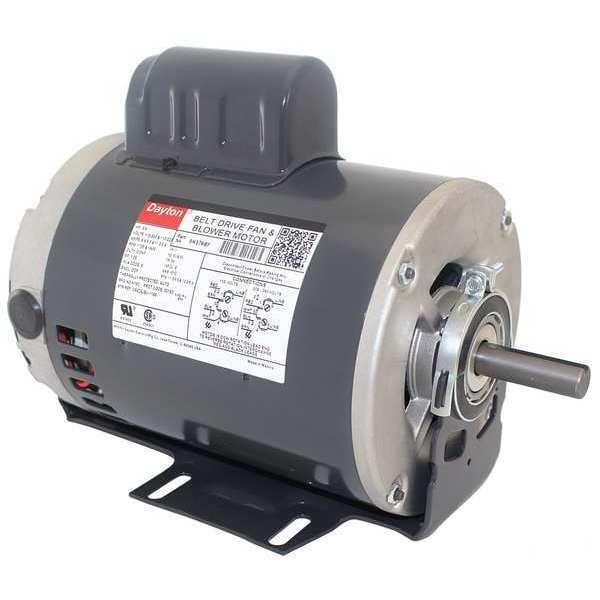

Capacitor-Start Belt Drive Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

  • Mfr # 6K376

  • Zoro # G3498616

product price:  $453.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6K376
Zoro #
G3498616
UPC #
190735365809
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
9 15/16 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Body Dia.
6 1/2 in
Overall Length
11 13/16 in
Resilient Ring Dia.
2 1/2 in
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56

Details

Item
Belt Drive Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Cradle Base
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
Auto
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nameplate RPM
1,725
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified (258501), UL Recognized (E37403), UL Recognized (E37403)
Frame Material
Steel
Nominal Efficiency
68.3 %
Max. Ambient Temp.
104 Degrees F
Hz
60/50 Hz
Footnotes
6
Phase
Single
Motor Bearings
Ball
Full Load Amps
9.8/5.0 A
Ins. Class
B
Duty
Continuous
Duty Cycle
Continuous
Ring to Ring Center
9 13/16 in
Insulation Class
B
Full Load Current @ 60 Hz
9.8/5.0 A
Nameplate Service Factor @ 60 Hz
1.25
Motor Enclosure Type
Open Drip Proof
Bearing Type
Ball
Product Type
Fan and Blower Motor
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
1 yr
Frequency
60/50 Hz
Drive Type
Belt Drive
Mounting Position
All Angle
Shaft Design
Keyed
Number of Speeds
1

Description

The DAYTON - 6K376 is a Capacitor Start AC Motor, specifically designed as a Belt Drive Motor. This type of motor uses a belt to transfer rotational motion from one shaft to another, making it an essential component in various industrial machinery systems due to its efficiency and versatility.Key features include:
• Voltage compatibility with 115/230V AC electrical input.
• Motor Service Factor: 1.25 indicating the capacity at which the motor can operate over standard output without overheating.
• Motor Enclosure Design: Open Dripproof providing better cooling but less protection.
• Cradle Base Mounting Type for secure installation onto compressors.
• Mountable at All Angle positions.
• Ball bearings enhancing operational efficiency and lifespan.
• Auto Thermal Protection preventing overheating by automatically shutting down when excessive heat is detected.
• Max Ambient Temp.: 104 Degrees F for optimal function in diverse settings.
• Nominal Efficiency of 68.3% ensuring effective removal of contaminants from air.
• Continuous Duty Cycle allowing non-stop run for optimal efficiency in high-demand settings.
• Compliant with CSA Certified (258501), UL Recognized (E37403) standards ensuring quality, safety, and efficiency.
