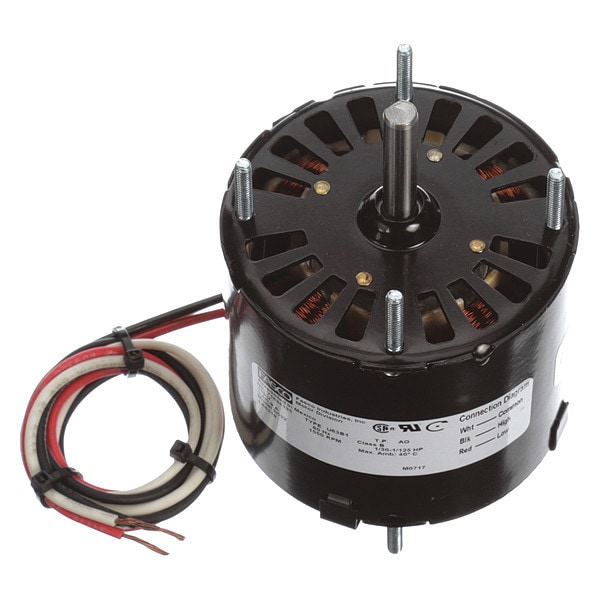

HVAC 3.3 In Motor, 1/30-1/125 HP, 115V, CW

  • Mfr # D532

  • Zoro # G6193494

product price:  $136.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/30, 1/125
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D532
Zoro #
G6193494
UPC #
663001027270
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
3 5/16 in
Shaft Dia.
5/16 in
Shaft Length
1 1/2 in
Stud Size
#8-32
Overall Length
4 9/16 in
Lead Length
21 in
Bolt Circle Dia.
2 7/8 in
Shaft Diameter
5/16 in
Mounting Stud Thread Size
#8-32
Frame Size
3.3
Body Diameter
3.3 in
Bolt Circle Diameter
2 7/8 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
2
HP
1/30, 1/125
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Standards
CSA Certified, UL Recognized
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Bearings
Sleeve
Phase
Single
Full Load Amps
1.4/0.9 A
Item
Fan and Blower Motor
Mounting Pattern
2-7/8 x 2-7/8
Motor Service Factor
1
Hz
60 Hz
Motor Sub Application
Direct Drive Fan/Blower
Max. Ambient Temp.
40 Degrees C
Number of Shafts
1
Motor Application
HVAC/R
Mounting Stud Location
4/Both Ends
Application
Fan/Blower
Duty
Continuous
Ins. Class
B
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
No. of Speeds
2
Motor Design
Shaded Pole
Motor Shaft Design
Flat
Frame
3.3
Motor Shaft Rotation
CWSE
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Weight
3 lb
Motor Mounting Position
All Angle
Mounting Holes
(8) #8-32
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Drive Type
Direct Drive
Sub Application
General Purpose
Product Type
Fan and Blower Motor
Full Load Current @ 60 Hz
1.4/0.9 A
Insulation Class
B
Wattage
20 W
Frequency
60 Hz
Bearing Type
Sleeve
Shaft Design
Flat

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/125 hp, 1/30 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 2, Voltage 115V AC, 1.4/0.9 A Full Load Amps, 3.3 Frame, Output Watts 20 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
