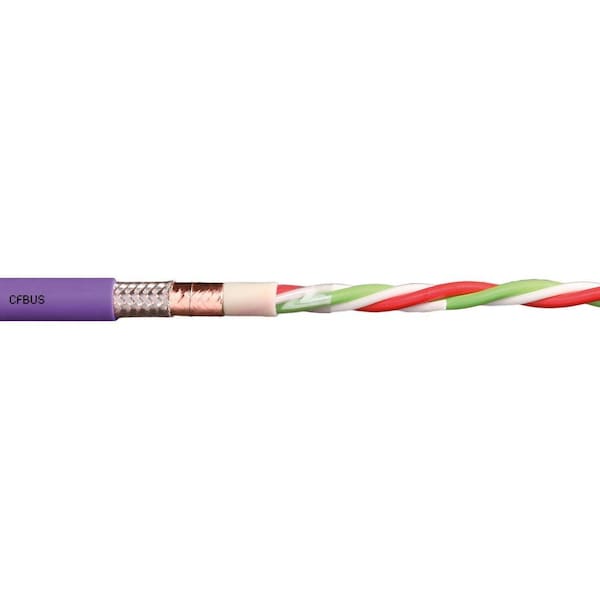

Bus Cable, DVI, 28 AWG, Red, 50 V
- Mfr # CFBUS-070
- Zoro # G708259936
product price:Â
$
18.49
/ea
Key Features
Length
Order by the Foot
Voltage
50 V
Jacket Color
Red
Shielding
Shielded
Conductor Material
Copper
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CFBUS-070
- Zoro #
- G708259936
- UPC #
- -
- Country of Origin
- Germany
- Item
- Bus Cable
- Voltage
- 50 V
- Jacket Color
- Red
- Shielding
- Shielded
- Conductor Material
- Copper
- Jacket Material
- TPR
- Standards
- 2011/65/EU, 2014/35/EU, CE 2014/35, RoHS Compliant-II, TC RU C-DE. ME77.B.01218, VDW DESINA
- Includes Ground
- No
- Maximum Acceleration
- 328.1 m/sq sec
- Conductor Grouping
- (4) Pair 28 AWG/(2) 28 AWG/(3) 28 AWG
- Bus System
- DVI
- Maximum Velocity - Supported
- 20 fps
- Product Type
- Bus Cable
- Minimum Operating Temperature - Flexible
- -49 Degrees F
- Impedance
- 100 ohm
- Conductor Color Code
- White, Yellow, Black, Blue, Brown, Green, Gray, Red
- Minimum Operating Temperature - Fixed
- -58 Degrees F
- Maximum Operating Temperature
- 158 Degrees F
- Resistance Properties
- Bending Resistance, Hydrolysis Resistant, Antimicrobial, Oil and Grease Resistant, UV/Sunlight Resistant
- Cable Series
- CFBUS
- Maximum Velocity - Unsupported
- 33 fps
- Series
- Chainflex
Dimensions
- Length
- Order by the Foot
- Overall Length
- Order by the Foot
- Minimum Bend Radius Factor - Flexible
- 8 x OD
- Outside Diameter
- 0.35 in
- Minimum Bend Radius Factor - E-Chain
- 12.5 x OD
- Minimum Bend Radius Factor - Fixed
- 5 x OD
- Nominal Outside Diameter
- 0.35 in
- Wire Rope Length
- Order by the Foot
Description
Bus Cable, Bus System DVI, Conductor Color Code White, Yellow, Black, Blue, Brown, Green, Gray, Red, Conductor Grouping (4) Pair 28 AWG/(2) 28 AWG/(3) 28 AWG, Conductor Material Copper, Impedance 100 ohm, Includes Ground No, Jacket Color Red, Jacket Material TPR, Length Order by the Foot, Maximum Acceleration 328.1 m/sq sec, Maximum Operating Temperature 158 Degrees F, Maximum Velocity - Supported 20 fps, Maximum Velocity - Unsupported 33 fps, Minimum Bend Radius Factor - E-Chain 12.5 x OD
