- MFR #
- 786-GN2FCABCP
- Zoro #
- G3076534
- UPC #
- 611943449551
- Country of Origin
- United States
- Number of Holes
- 3
- Mounting Hole Center to Center
- 8"
- Finish
- Polished Chrome
- Number of Handles
- 2
- Faucet Operation
- Manual
- ADA Compliant
- Yes
- Flow Rate
- 1.50 gpm
- Handle Type
- Wristblade
- Mounting Type
- Deck Mount
- Item

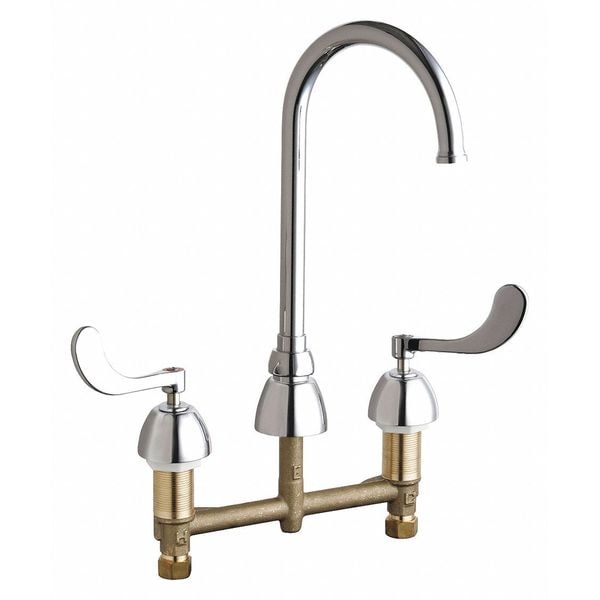

- Gooseneck Kitchen/Bathroom Faucet
- Valve Type
- Compression
- Body Material
- Cast Brass
- Faucet Finish
- Chrome
- ADA Compliance
- ADA Compliant
- Flow Outlet Type
- Laminar
- Mounting Type - Faucet
- Deck
- Vandal Resistant Features
- Vandal Resistant Handles
- Mounting
- Concealed
- Faucet Spout
- Rigid/Swing
- Connection
- 1/2" MNPS
- Faucet Type
- Kitchen Sink Faucet, Bathroom Sink Faucet
- Flow Outlet Type (Faucet)
- Laminar
- Flow Outlet Type - Faucet
- Laminar
- Standards
- AB1953, ANSI A117.1, ASME A112.18.1/CSA B125.1, BAA Compliant, NSF 372, NSF 61/9
- Power Source
- Manual
- Type
- Two Turn Non-Metering
- Handle Material
- Cast Brass
- Includes
- Mounting hardware
- Features
- Mounting Hardware Included
- Green Certification or Other Recognition
- California Energy Commission (CEC) Certified
- Residential / Commercial
- Commercial
- Temperature Control
- Non-Adjustable Temperature
- CEC Compliant
- CEC Compliant
- Spout Reach
- 5-1/4"
- Water Inlet Connection Type
- Male NPSM
- Faucet Handle Material
- Metal
- Max. Mounting Hole Center Distance
- 8"
- Ligature Resistant
- No
- Series
- 786
- Faucet Body Material
- Cast Brass
- Valve Type - Faucets
- Hot/Cold Cartridge
- Faucet Activation
- Manual
- Replacement Cartridge Mfr. Model Number
- 377-XKLHJKABNF, 377-XKRHJKABNF
- Material of Construction
- Low Lead Cast Brass
- Application
- Commercial
- Outlet Type
- Laminar Flow
- Product Type
- Faucet
- For Location
- Bathroom, Kitchen
- Operation Method
- Manual
- Ligature Resistance
- Not Ligature-Resistant
- Spout Shape
- Gooseneck
- Pressure - Maximum
- 125 psi
- CEC Compliance
- CEC Compliant
- Mounting Hole Center-to-Center Distance - Minimum
- 8 in
- Flow Type
- Laminar
- Temperature - Minimum
- 40 Degrees F
- Vandal Resistance
- Vandal-Resistant Handle
- Compatible Cartridge Manufacturer Part Number
- 377-XKLHJKABNF, 377-XKRHJKABNF
- Flow Rate - Maximum
- 1.5 gpm
- Number of Mounting Holes
- 3
- Temperature - Maximum
- 140 Degrees F
- Inlet Connection Gender
- Male
- Inlet Connection Type
- NPSM
- Legend Style
- Color
- Mounting Hole Center-to-Center Distance - Maximum
- 8 in
- Warranty
- 1 yr Limited, 5 yr Limited, Lifetime Limited
- For Water Temperature
- Hot/Cold
- Water Supply Type
- Hot and Cold Lines
- Spout Style
- Swivel
- Includes Drain
- Drain Not Included
- Power Source - TS Only
- Manual
- Power Source - old
- Manual
