  6. Sensor Single Hole Mount, 1 Hole Gooseneck Bathroom Faucet, Polished chrome

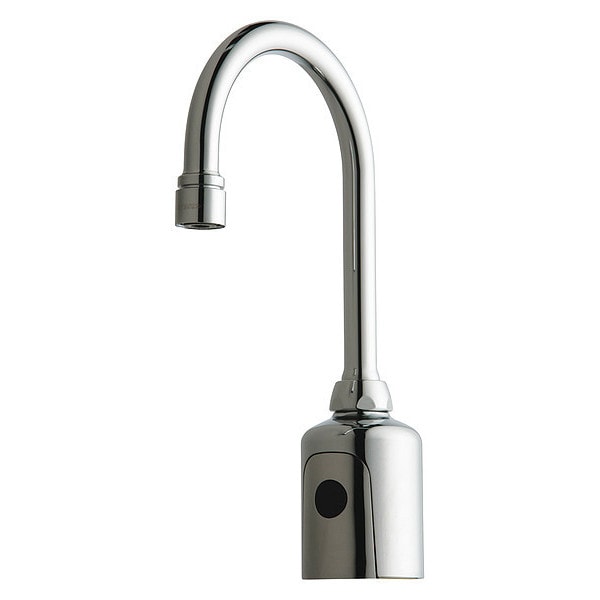

Chicago Faucet Sensor Single Hole Mount, 1 Hole Gooseneck Bathroom Faucet, Polished chrome WWG116.618.AB.1T - main

Sensor Single Hole Mount, 1 Hole Gooseneck Bathroom Faucet, Polished chrome

  • Mfr # WWG116.618.AB.1T

  • Zoro # G6435873

product price:  $920.99
/ea
Free Shipping & Returns

Key Features

Application
Commercial
Finish
Polished Chrome
Faucet Operation
Sensor
Manufacturers Warranty Length
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty Warranty, 5 yr Limited Mechanical Warranty, Lifetime Limited Faucet Warranty
Mounting Type
Deck Mount
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WWG116.618.AB.1T
Zoro #
G6435873
UPC #
611943134563
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty Warranty, 5 yr Limited Mechanical Warranty, Lifetime Limited Faucet Warranty
Spout Length
5 3/8 in
Max. Installation Surface Thickness
1 1/2 in
Spout Height
11 3/8 in
For Surface Thickness - Maximum
1 1/2 in
Inlet Connection Size
3/8 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
11 3/8 in
Spout Outlet Height
7 1/4 in
Overall Width
2 1/2 in

Details

Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Faucet Operation
Sensor
Mounting Type
Deck Mount
Ligature Resistant
No
Flow Outlet Type
Vandal-Proof, Non-Aerating, Spray
Includes
Mounting Hardware
Number of Holes
1
Mounting Hole Center to Center
Single Hole
Body Material
Cast Brass
Standards
ADA ANSI/ICC A117.1, ASME A112.18.1/CSA B125.1, NSF/ANSI/CAN 61: Q Less Than or Equal To 1
Flow Rate
0.5 gpm
Faucet Finish
Chrome
ADA Compliant
Yes
Voltage
5.5V DC
Power Source
Battery
Features
Bluetooth Compatible
Mounting Type - Faucet
Deck
ADA Compliance
ADA Compliant
Faucet Type
Bathroom Sink Faucet
Vandal Resistant Features
Vandal Resistant Outlet
Battery Type
D
Faucet Body Material
Cast Brass
Series
HyTronic Gooseneck
Drain Style
Drain Not Included
Spout Reach
5 3/8 in
Flow Outlet Type - Faucet
Spray
CEC Compliant
CEC Compliant
Faucet Activation
Motion Sensor
Temperature Control
Non-Adjustable Temperature
Max. Mounting Hole Center Distance
Single Hole
Valve Type - Faucets
Solenoid Valve
Operation Method
Motion Sensor
Flow Rate - Maximum
0.5 gpm
Temperature - Maximum
180 Degrees F
CEC Compliance
CEC Compliant
Time Out
40 sec
Vandal Resistance
Vandal-Resistant Outlet
Temperature - Minimum
100 Degrees F
Product Type
Sensor Faucet
Sensor Range - Maximum
13 in
Includes Batteries
Batteries Included
Includes Drain
Drain Not Included
Pressure - Maximum
125 psi
Warranty
1 yr Limited Finish Warranty, 3 yr Limited Electronics and Solenoid Warranty, 5 yr Limited Mechanical Warranty, Lifetime Limited Faucet Warranty
Water Supply Type
Single Tempered Line
Includes Transformer
Transformer Not Included
Number of Mounting Holes
1
Sensor Range - Minimum
3 in
Inlet Connection Type
Compression
Includes Handle
Handle Not Included
Spout Style
Fixed
For Location
Bathroom
Ligature Resistance
Not Ligature-Resistant
Flow Type
Spray
Temperature Control Method
Mixing Valve Not Included
Spout Shape
Gooseneck

Description

Gooseneck Bathroom Faucet,Deck Mount
