  6. 10pc HSS Straight Flute Plug HandTap Set, N303SET HTGP Greenfield Threading 4-Flt GH3 1/4-1/2 UNC/UNF

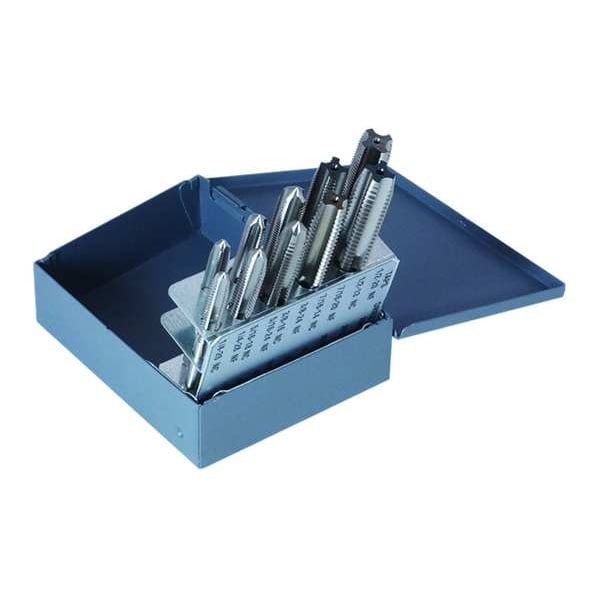

Chicago-Latrobe 10pc HSS Straight Flute Plug HandTap Set, N303SET HTGP Greenfield Threading 4-Flt GH3 1/4-1/2 UNC/UNF 330082 - main

10pc HSS Straight Flute Plug HandTap Set, N303SET HTGP Greenfield Threading 4-Flt GH3 1/4-1/2 UNC/UNF

  • Mfr # 330082

  • Zoro # G1859142

product price:  $133.99
/ea
Free Shipping & Returns

Key Features

Overall Length
2 1/2 in, 2 23/32 in, 2 15/16 in, 3 5/32 in, 3 3/8 in
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Tap Thread Size
#80-#0
Thread Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
330082
Zoro #
G1859142
UPC #
093367300821
Country of Origin
United States

Dimensions

Overall Length
2 1/2 in, 2 23/32 in, 2 15/16 in, 3 5/32 in, 3 3/8 in
Tap Thread Size
#80-#0
Shank Dia.
0.2550 in, 0.3180 in, 0.3230 in, 0.3670 in, 0.3810 in
Thread Length
1 in, 1 1/8 in, 1 1/4 in, 1 7/16 in, 1 25/32 in
Pitch Diameter Limit
H3
Tap Dimension Type
Inch
65% Thread Drill Size
#5, 10.00 mm, 11.00 mm, 11.60 mm, 17/64 in, 7/32 in, J, P, R, V
55% Thread Drill Size
#3, 10.20 mm, 11.30 mm, 11.80 mm, 11/32 in, 5.70 mm, 8.40 mm, 9/32 in, I, W
Thread Sizes Included
1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20
75% Thread Drill Size
#7, 11.40 mm, 27/64 in, 5.45 mm, 5/16 in, 8.50 mm, 9.95 mm, F, I, U
Drill Bit Sizes Included
#3, #7, 25/64 in, 27/64 in, 29/64 in, 5/16 in, F, I, Q, U
Smallest Thread Size
1/4"-20
Largest Thread Size
1/2"-13
Smallest Drill Bit Dia.
#7
Largest Drill Bit Dia.
29/64"

Details

Item
Multiple Size Tap Set
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Flutes
4
Number of Pieces
10
Tap Style
Straight Flute (Hand)
List Number
HTGP
Standards
USCTI
Tap Thread Type
UNC
Tap Chamfer
Plug
Includes
Metal Index Case, 1/4 in -20, 1/4 in -28, 5/16 in -18, 5/16 in -24, 3/8 in -16, 3/8 in -24, 7/16 in -14, 7/16 in -20, 1/2 in -20, 1/2 in -13
Features
Straight with Square End
Thread Limit
H3
Number Of Taps
10
Series
303
Threads per Inch
11.5, 14, 18, 27
Measurement System
Fractional Inch
Thread Standard
UNC, UNF
Case Type
Metal Index
Tap Type
Hand Tap
Finish - Machining
Bright (Uncoated)

Description

Hand Tap Set, Hand Tap, High Speed Steel, Number of Pieces 10, Thread Sizes Included 1/2 In.-13, 1/2 In.-20, 1/4 In.-20, 1/4 In.-28, 3/8 In.-16, 3/8 In.-24, 5/16 In.-18, 5/16 In.-24, 7/16 In.-14, 7/16 In.-20, Thread Standard UNC, UNF, Thread Direction Right Hand, Tap Finish Bright (Uncoated), Thread Limit H3, Case Type Metal Index, Drill Bit Sizes Included #3, #7, 25/64 in, 27/64 in, 29/64 in, 5/16 in, F, I, Q, U
