13PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS 1/16-1/4

  • Mfr # 57711

  • Zoro # G1545433

product price:
$
34.39
/ea

Key Features

Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
57711
Zoro #
G1545433
UPC #
662355577110
Country of Origin
United States

Dimensions

Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4"
Shank Dia.
1/16 in
Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/4 in by 64ths
Drill Bit Dimension Type
Fractional Inch
Depth x Dia. Ratio
4xD
Size Range
1/16"-1/4"
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/4 in
Smallest Drill Bit Size
1/16 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Wire Rope Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in
Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
13
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
List Number
150
Point Type
Conventional Point
Standards
ASME B94.11M-1993
Left/Right Hand
Right
Flute Type
Spiral
Measurement System
Fractional Inch
Drill Style
Jobber Drill
Shank Type
Straight
Aircraft Drill
No
Drill Bit Point Type
Conventional Point
Number of Drill Bits
13
Coolant Fed
Non-Coolant Through
Primary Material Application
Cast Iron, Steel
Material Grade - Machining
General Purpose
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Material - Machining
High Speed Steel
Drill Bit Case Type
Metal Index
Spiral Direction
Right Hand
Number of Flutes
2
Primary Material Application ISO Code
K, P
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

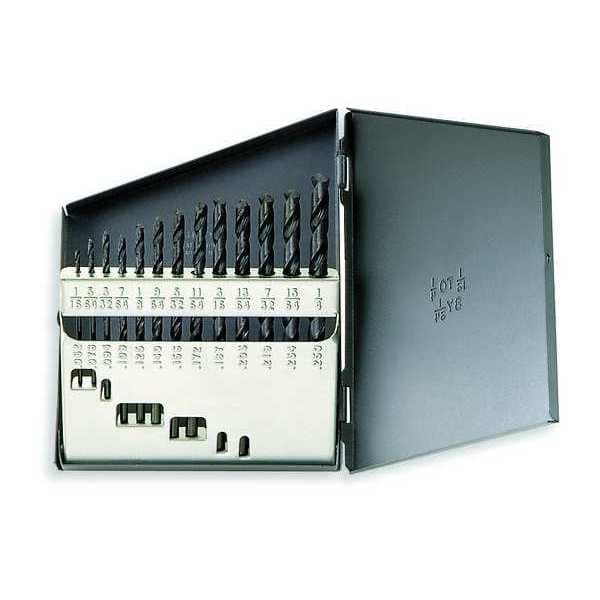

The CHICAGO-LATROBE 57711 is a jobber length drill bit set comprising 13 pieces ranging in size from 1/16" to 1/4". Each drill bit is constructed from high speed steel with a general purpose grade, intended for use on metal workpieces, including cast iron and steel. These drill bits feature a conventional 118-degree point and a right-hand spiral direction, sized for fractional-inch drill bit measurements (1/16" through 1/4"). The set is housed in a metal drill index case.

Key Features:

  • Material: High speed steel, general purpose grade
  • Drill bit sizes: 1/16" to 1/4" in 13 increments by 64ths
  • Overall lengths vary from 1 7/8" to 4" depending on size
  • Shank: Straight with a 1/16" diameter
  • Point: Conventional 118-degree angle
  • Flutes: Two spiral flutes with a helix angle between 21° and 34°
  • Cutting direction: Right hand
  • Conforms to ASME B94.11M-1993 standard
  • Drill length class: Jobber length
  • Includes metal index case for storage
